(1-12) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS

Запчасти Case IH 1818 (1-12) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS (00) - PICTORIAL INDEX

Схема запчастей Case IH 1818 - (1-12) - PICTORIAL INDEX, HYDROSTATIC DRIVE HYDRAULICS (00) - PICTORIAL INDEX
10
9
6
5
2
7
7
12
11
12
7
11
5
3
4
1
1
3
5
8
11
11
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

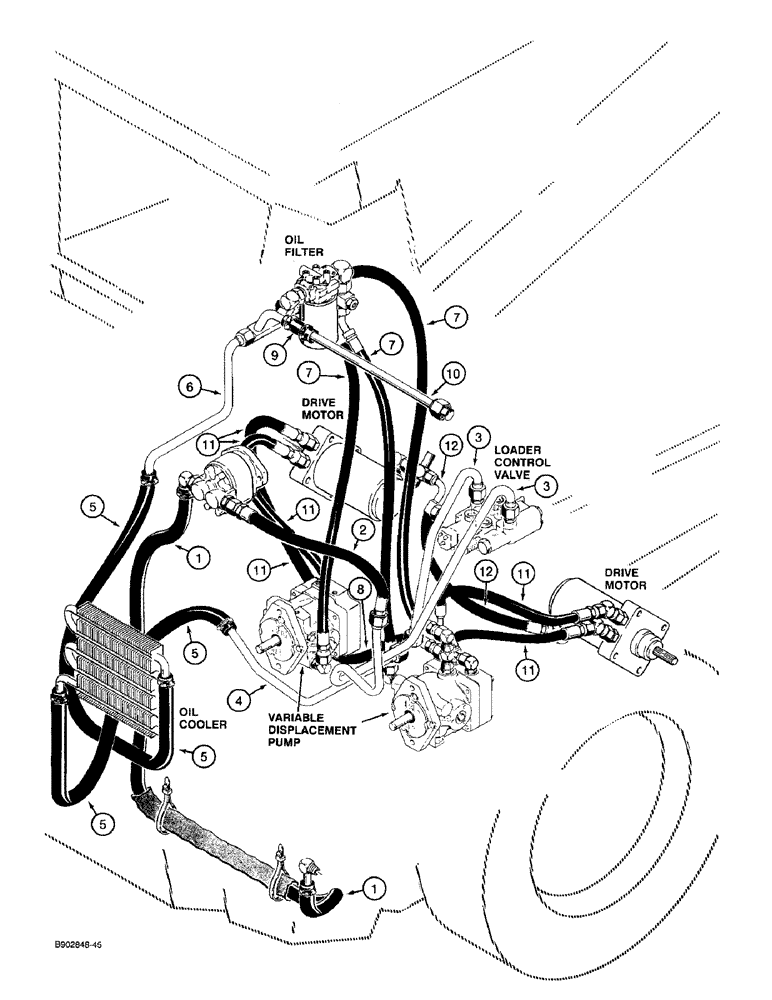

1

Hose at Hydraulic Tank to Equipment Pump, Figure 8-6, 8-8

1шт.

2

Hose from Equipment Pump to Tube at Loader Control Valve, Figure 8-6, 8-8

1шт.

3

Tubes at Loader Control Valve, Figure 8-6, 8-8

1шт.

4

Tube from Tee to Oil Cooler, Figure 8-6, 8-8

1шт.

5

Hoses at Oil Cooler Inlet and Outlet, Figure 8-6, 8-8

1шт.

6

Tube from Hose at Oil Cooler to Oil Filter, Figure 8-6, 8-8

1шт.

7

Hoses from Oil Filter to Variable Displacment Pumps, Figure 8-10, 8-11A

1шт.

8

Hose from Right Hand Variable Displacement Pump to Left Hand Variable Displacment Pump, Figure 8-10, 8-11A

1шт.

9

Hose from Manifold to Hydraulic Reservoir, Figure 8-10, 8-11A

1шт.

10

Tube at Hydraulic Reservoir, Figure 8-10, 8-11A

1шт.

11

Hoses from Hydraulic Drive Motors to Variable Displacement Pumps, Figure 6-14

1шт.

12

Drain Hose from Left Hand Drive Motor, Figure 6-14

1шт.
