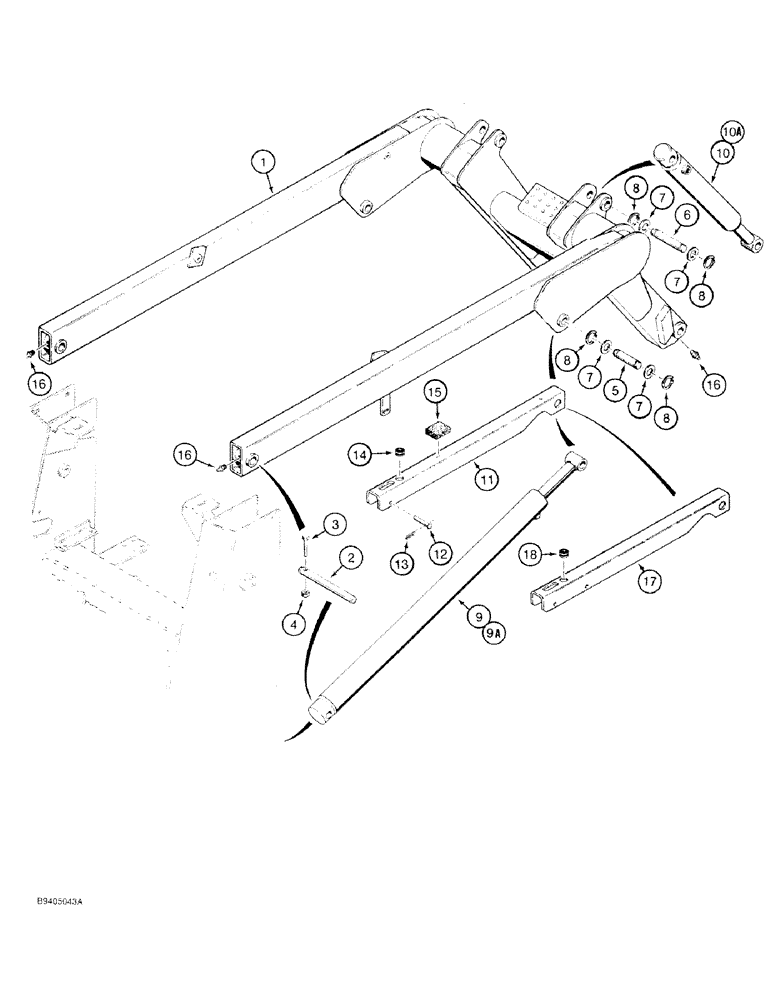

Запчасти Case IH 1818 (9-04) - LOADER LIFT FRAME (09) - CHASSIS/ATTACHMENTS

1

H673982

ROCKER ARM

FRAME loader lift

1шт.

2

D138891

PIN,25.4mm OD x 149mm L

mounting, loader lift frame and closed end of lift, Serial Range: cylinder-chassis

4шт.

3

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

hex, 3/8 NC x 2-1/4 inch, grade 8

4шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

5

D138889

PIN,69.98mm OD x 160mm L

mounting, rod end of lift cylinder and strut to loader lift frame

2шт.

6

D138888

PIN,22.22mm OD x 114.6mm L

mounting, closed end of tilt, Serial Range: cylinder-frame

2шт.

7

H437175

WASHER

flat, hardened

8шт.

8

100-1687

SNAP RING,#87, Ext

Ring, Snap, , Pin #87, Ext

8шт.

9

D136838

CYLINDER ASSY.

CYLINDER ASSEMBLY loader lift, parts Figure 8-24

2шт.

9a

104516A1

CYLINDER ASSY.

CYLINDER ASSEMBLY loader lift, parts list Figure 8-26

2шт.

10

D136128

CYLINDER

ASSEMBLY bucket tilt, parts list Figure 8-28 no longer available, order 104517A1, parts list Figure 8-31

2шт.

10a

104517A1

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket tilt, parts list Figure 8-30

2шт.

11

H438090

SUPPORT

STRUT lift frame support, Serial Range: -JAF0095593

1шт.

12

D134253

PIN

strut lock

1шт.

13

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

14

H438045

GROMMET

strut, used with Ref. 11 only

1шт.

15

D79692

PAD

strut, lift arm

1шт.

16

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self tap, 1/8 PT x 5/8 inch

4шт.

17

119142A1

BAR

STRUT lift frame support, Start Serial: JAF0095593

1шт.

18

49566

GROMMET

strut, used with Ref. 17 only

1шт.
