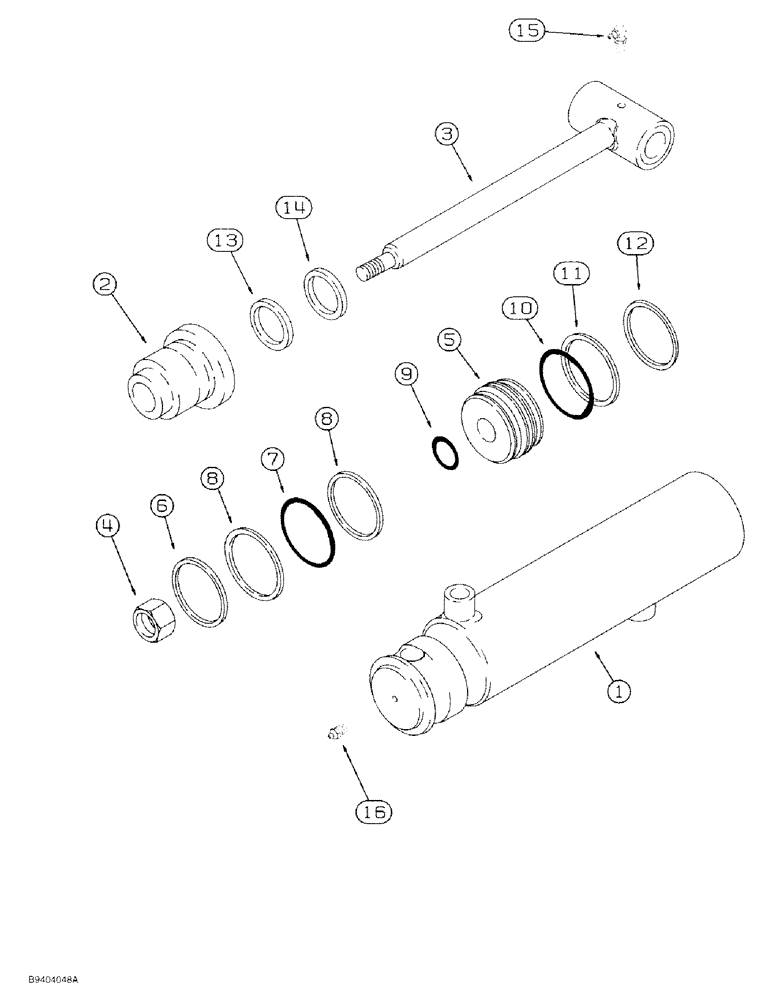

Запчасти Case IH 1818 (8-30) - LOADER BUCKET CYLINDER P/N 104517A1 (08) - HYDRAULICS

104517A1

CYLINDER ASSY.

CYLINDER ASSEMBLY bucket, 2 inch (51 mm) x 27 inch (686 mm) stroke, Includes: Ref. 1-16, see Figure 9-4 and 9-6 for mounting hardware

2шт.

1

110508A1

JACK BODY

TUBE cylinder

1шт.

2

108641C1

GLAND

cylinder

1шт.

3

110509A1

PISTON ROD

ROD cylinder

1шт.

4

231-41310

LOCK NUT,5/8"-11, GB

NUT hex, self locking, 5/8 inch NC

1шт.

5

110501A1

JACK PISTON

PISTON cylinder

1шт.

110510A1

SEAL KIT

KIT seal, Includes: Ref. 6-14

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING outer, piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING inner, piston

1шт.

10

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

Gland -326, 90 Duro, 1.60" ID x .210" Thk

1шт.

11

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING backup, gland

1шт.

12

461180R1

RETAINER

RING lock, gland

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL rod, gland

1шт.

14

532773R1

WIPER SEAL

SEALrod wiper, gland

1шт.

15

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
