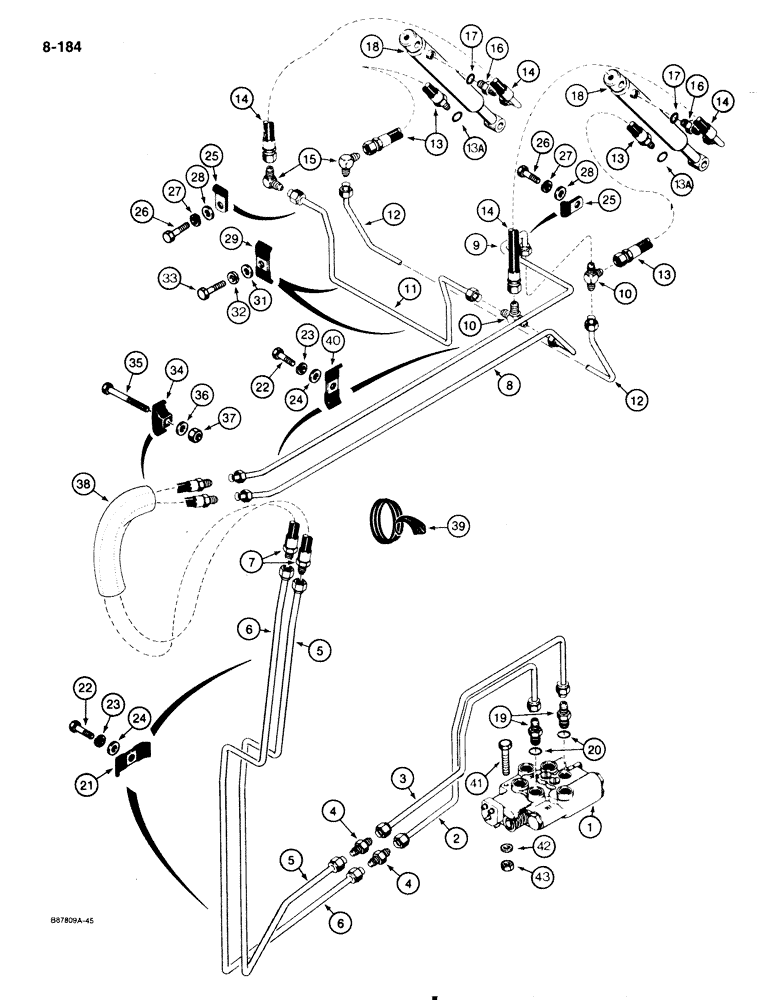

Запчасти Case IH 1818 (8-184) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D139830

VALVE

ASSEMBLY control, loader, parts list Figure 8-186

1шт.

2

D139049

PIPE

TUBE at control valve, port C

1шт.

3

D136604

PIPE

TUBE at control valve, port D

1шт.

4

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR straight

2шт.

5

D139053

PIPE

TUBE intermediate, to hoses at loader arm

1шт.

6

D139051

PIPE

TUBE intermediate, to hoses at loader arm

1шт.

7

D122103

HOSE

37-3/8" (950 mm) long, at loader arm

2шт.

8

D138781

PIPE

TUBE to closed end of bucket tilt cylinder

1шт.

9

D138779

PIPE

TUBE to rod end of bucket tilt cylinder

1шт.

10

218-593

TEE,9/16"-18, 37 Degree

male

2шт.

11

H138720

BELT

TUBE crossover, to closed end of bucket tilt cylinder

1шт.

12

D138783

PIPE

TUBE crossover, to rod end of bucket tilt cylinder

1шт.

13

D138814

HOSE

17-3/4" (450 mm) long, to rod end of bucket tilt cylinder, Includes: Ref. 13A

2шт.

13

E20149

HOSE

17-3/4" (450 mm) long, to rod end of bucket tilt cylinder TBG Germany, Includes: Ref. 13A

2шт.

14

D138813

HOSE,9.53mm ID x 370mm L, SAE 100R1

14-9/16" (370 mm) long, to closed end of bucket tilt cylinder

2шт.

14

E20148

FLEXIBLE HOSE

HOSE, 14-9/16" (370 mm) long, to closed end of bucket tilt cylinder TBG Germany

2шт.

15

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

90 degree

2шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR straight, Incl. Ref. 17

2шт.

18

D136128

CYLINDER

ASSEMBLY bucket tilt, parts list Figure 8-210

2шт.

19

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 20 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

21

R17319

CLAMP

tube

4шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

24

195-521

WASHER,5/16", SAE

flat, 5/16", plated

6шт.

25

H349720

CLAMP

tube

2шт.

26

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

27

492-11038

LOCK WASHER,3/8"

2шт.

28

95-6

WASHER,3/8"

flat, , plated 3/8"

2шт.

29

D135637

CLAMP

vertical, crossover tube on upper loader lift frame

2шт.

31

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

33

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

34

D124301

CLAMP,3/4" ID

bucket tilt cylinder hose on upper right hand side of chassis

1шт.

35

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

hex head, 3/8" - 16 NC x 1-7/8"

1шт.

36

95-6

WASHER,3/8"

flat, 3/8"

1шт.

37

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

1шт.

38

D131814

SLEEVE

hoses, at loader arm

1шт.

39

D38500

LINING

TRIM, 9-13/16" long, upper right hand side of chassis, cut from P/N F42827 bulk trim, see below

1шт.

40

R17319

CLAMP

tube

2шт.

41

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

2шт.

F42827

TRIM,2946.4mm L

TRIM bulk, edge, 116" (2946 mm) long

1шт.

13a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Hose

1шт.

13a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Hose

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Connector

1шт.
