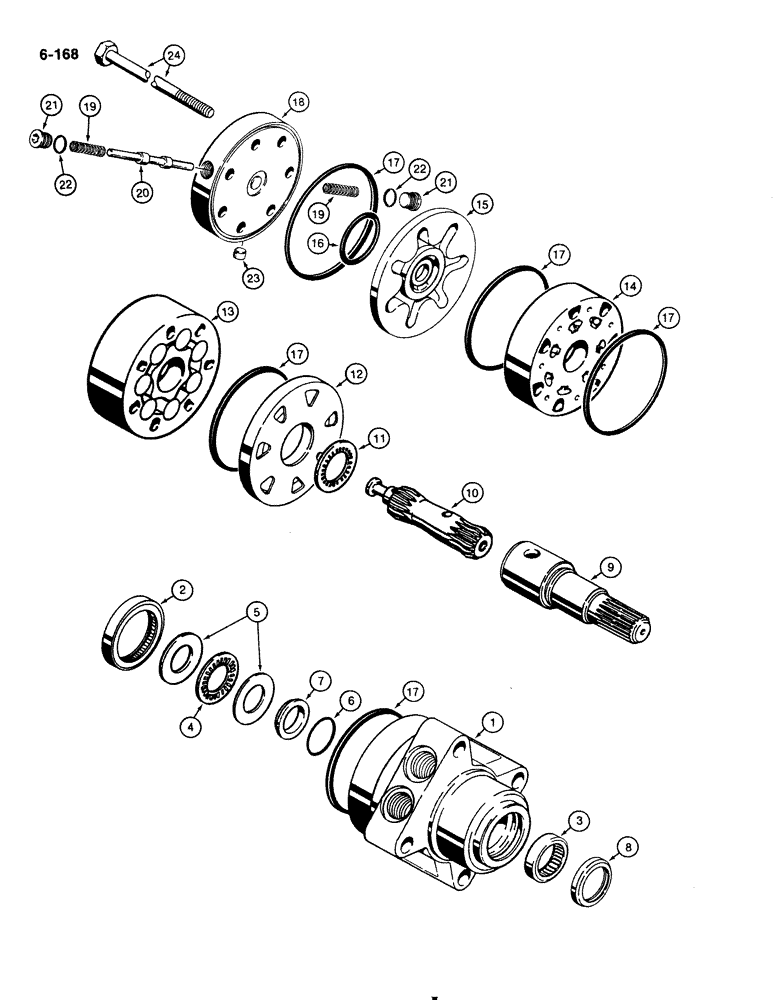

Запчасти Case IH 1818 (6-168) - HYDROSTATIC DRIVE MOTOR (06) - POWER TRAIN

D136681

MOTOR, HYDRAULIC

MOTOR ASSEMBLY hydrostatic drive, Includes: Ref. 1-24 and P/N N14343

2шт.

N14343

HOUSING

ASSEMBLY motor, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

N14361

BEARING, NEEDLE,Needle, 54mm ID x 63.49mm OD x 12.7mm W

BEARING needle, large

1шт.

3

N14360

BEARING, NEEDLE,Needle, 35.61mm ID x 57.15mm OD x 17.91mm W

BEARING needle, small

1шт.

4

N14359

BEARING, THRUST,1.51" ID x 2.295" OD x 0.1562"

BEARING thrust, shaft

1шт.

5

N14358

BEARING WASHER,1.512" ID x 2.295" OD x 0.095"

WASHER thrust, bearing

2шт.

6

N14362

RING

backup, seal, housing

1шт.

7

N14363

SEAL,34.72mm ID x 42.42mm OD x 6.48mm Thk

housing

1шт.

8

N14357

SEAL,35.57mm ID x 57.3mm OD x 6.5mm Thk

shaft, outer

1шт.

9

N14443

SHAFT

coupling

1шт.

10

N14444

LINK

drive

1шт.

11

N14346

BEARING, THRUST,1.408" ID x 2.488" OD x 0.0945"

BEARING thrust, link

1шт.

12

N14445

PLATE

wear

1шт.

13

N14446

ROTOR

drive motor

1шт.

14

N14447

MANIFOLD

plate

1шт.

15

N14350

COMMUTATOR

includes center ring

1шт.

16

N6709

RING,39.47mm ID x 42.67mm OD x 1.65mm Thk

seal, small

1шт.

17

N14354

RING

seal, large

5шт.

REF 17. IF THIS "O" RING DOES NOT WORK TRY P/N 405993R1, I.D. 4.321 +/- .031" X .083 +/- .003" THICK. REF. N14353 PRINT.

1шт.

N14351

COVER

ASSEMBLY end, Includes: Ref. 18-23

1шт.

18

NSS

NOT SOLD SEPARAT

COVER end

1шт.

19

N8442

SPRING

end cover

2шт.

20

N7783

VALVE

end cover

1шт.

21

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 22 Hex Soc, 7/16"-20 ORB

2шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Plug

1шт.

23

N14365

PLUG

ORIFICE end cover

1шт.

24

N14448

BOLT

special

7шт.
