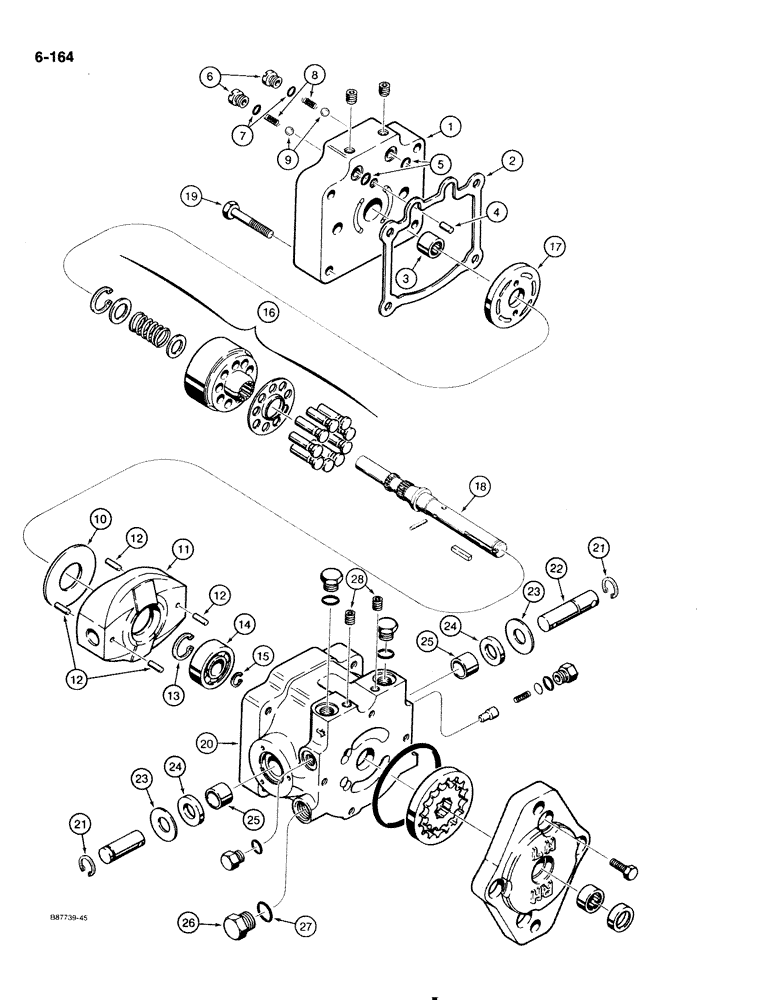

Запчасти Case IH 1818 (6-164) - VARIABLE DISPLACEMENT PUMP, GASOLINE MODELS ONLY (06) - POWER TRAIN

D136764

PUMP

ASSEMBLY variable displacement, Includes: Ref. 1-28

2шт.

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

2шт.

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

2шт.

1

N14421

CAP

end

1шт.

2

H255059

GASKET

end cap

1шт.

3

D65125

ROLLER BEARING,0.6699" ID x 0.937" OD x 0.62"

BEARING roller, shaft

1шт.

4

D65124

PIN

end cap

1шт.

5

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

end cap

2шт.

6

D63410

PLUG

check valve

2шт.

8

D63409

VALVE SPRING

SPRING check valve

2шт.

9

211-212

BALL

7/16", grade 25, chrome alloy steel

2шт.

10

D63400

PLATE

thrust

1шт.

11

D63399

PLATE

swash, pump

1шт.

12

138-2062

PIN,3/16" x 5/8", Coiled

4шт.

13

16242

SNAP RING,1.852", Int, #185

Ring, Snap, , swash plate 1.852", Int, #185

1шт.

14

L31005

BALL BEARING

ball, shaft

1шт.

15

D46211

SNAP RING,#78, Ext

Ring, Snap, , shaft #78, Ext

1шт.

16

N14423

LOCK, CYLINDER

BLOCK cylinder

1шт.

17

N14422

PLATE

cylinder block

1шт.

18

D75827

SHAFT

pump

1шт.

19

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

20

N14420

HOUSING

pump

1шт.

21

D65126

SNAP RING,#68, Ext

Ring, Snap, , trunnion shaft #68, Ext

2шт.

22

D63404

SHAFT

trunnion

1шт.

23

H249599

WASHER

special

2шт.

24

H755884

SEAL

trunnion shaft

2шт.

25

N14439

BUSHING

brass, trunnion shaft

2шт.

26

214389

PLUG,3/4" - 16 ORB

Includes Ref. 27 Hex Hd, 3/4"-16 ORB

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

28

F23137

PLUG

pipe, special

2шт.

7

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, check valve

2шт.
