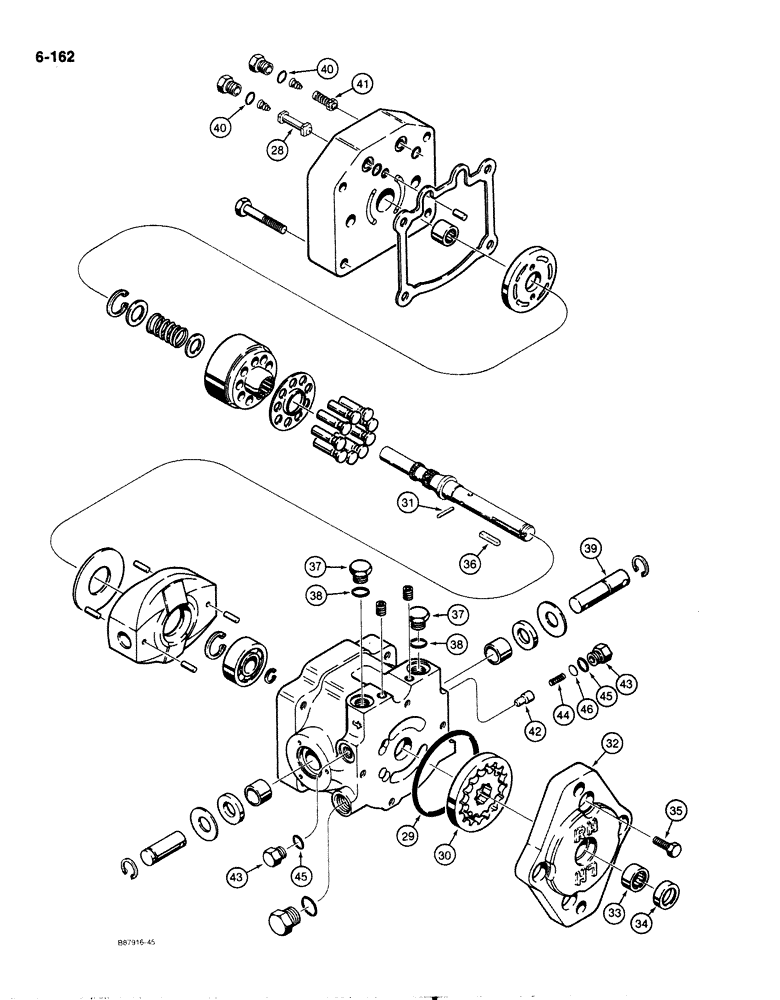

Запчасти Case IH 1818 (6-162) - VARIABLE DISPLACEMENT PUMP, DIESEL MODELS ONLY (06) - POWER TRAIN

D137544

PUMP

ASSEMBLY variable displacement, continued from Figure 6-160, Includes: Ref. 28-46

1шт.

28

N14437

VALVE POPPET

POPPET relief valve

1шт.

H619858

KIT

charge pump, Includes: Ref. 29-35

1шт.

29

W15848

O-RING,3.487" ID x 3.693" OD x 0.103"

charge pump

1шт.

30

N7062

PLATE

GEROTOR charge pump

1шт.

31

N7060

AXLE PIN

PIN charge pump

1шт.

32

N7059

HOUSING

charge pump

1шт.

33

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

BEARING needle, charge pump

1шт.

34

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

oil

1шт.

35

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

36

D65127

KEY

axial

1шт.

37

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 38 Hex Hd, 9/16"-18 ORB

2шт.

39

D63408

SHAFT

trunnion

1шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

2шт.

41

N14434

VALVE, PRESSURE RELI

VALVE circuit relief, pump

1шт.

N14438

VALVE, PRESSURE RELI

VALVE ASSEMBLY relief, pump, Includes: Ref. 42-46

1шт.

42

D63413

CONE

PLUNGER relief valve

1шт.

43

N7061

PLUG

relief valve

2шт.

44

D63407

VALVE SPRING

SPRING relief valve

1шт.

46

D63406

SHIM

relief valve

1шт.

45

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, relief valve

2шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.
