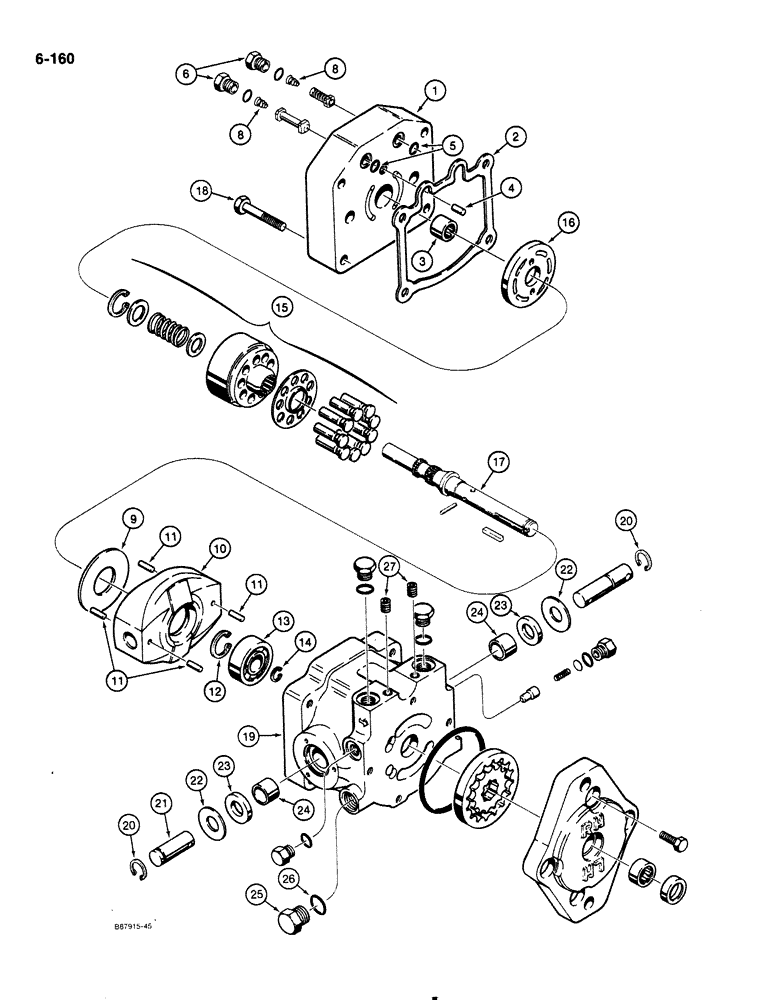

Запчасти Case IH 1818 (6-160) - VARIABLE DISPLACEMENT PUMP, DIESEL MODELS ONLY (06) - POWER TRAIN

D75993

PUMP

ASSEMBLY variable displacement, Replaces: P/N D137544, Includes: Ref. 1-27

2шт.

1

N14432

CAP

end

1шт.

2

H255059

GASKET

end cap

1шт.

Ref 2 and 16 are interchangeable if new Brg. and shaft are replaced as a set.

1шт.

3

H437095

NEEDLE BEARING

BEARING roller, shaft, Replaces: P/N D65125

1шт.

4

D65124

PIN

end cap

1шт.

5

F23111

O-RING

end cap

2шт.

6

N14436

PLUG

check valve

2шт.

8

N14435

SPRING

check valve

2шт.

9

D63400

PLATE

thrust

1шт.

10

D63399

PLATE

swash, pump

1шт.

11

138-2062

PIN,3/16" x 5/8", Coiled

4шт.

12

16242

SNAP RING,1.852", Int, #185

Ring, Snap, , swash plate 1.852", Int, #185

1шт.

13

L31005

BALL BEARING

ball, shaft

1шт.

14

D46211

SNAP RING,#78, Ext

Ring, Snap, , shaft #78, Ext

1шт.

15

N14423

LOCK, CYLINDER

BLOCK cylinder

1шт.

16

N14433

PLATE

cylinder block

1шт.

Ref 2 and 16 are interchangeable if new Brg. and shaft are replaced as a set.

1шт.

17

H437098

SHAFT

pump, Replaces: P/N D75827

1шт.

18

H6789-23

BOLT hex head, 3/8" - 16 NC x 2-1/2", plated, Replaces: P/N 113-257

4шт.

19

N14420

HOUSING

pump

1шт.

20

D65126

SNAP RING,#68, Ext

Ring, Snap, , trunnion shaft #68, Ext

2шт.

21

D63404

SHAFT

trunnion

1шт.

22

H249599

WASHER

special

2шт.

23

H755884

SEAL

trunnion shaft

2шт.

24

N14439

BUSHING

brass, trunnion shaft

2шт.

25

214389

PLUG,3/4" - 16 ORB

Includes Ref. 26 Hex Hd, 3/4"-16 ORB

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

27

F23137

PLUG

pipe, special

2шт.
