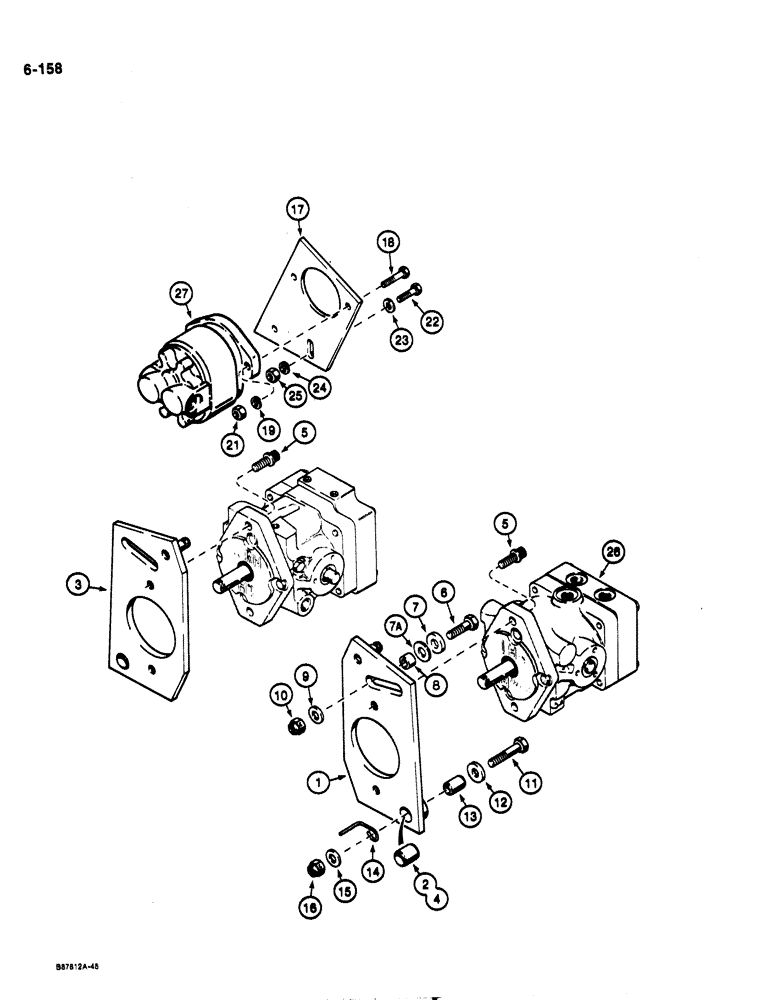

Запчасти Case IH 1818 (6-158) - PUMP MOUNTING (06) - POWER TRAIN

1

D122390

PLATE

variable displacement pump mounting, right hand, Includes: Ref. 2

1шт.

2

D78700

BUSHING

pump mounting plate

1шт.

3

D122389

PLATE

variable displacement pump mounting, left hand, Includes: Ref. 4

1шт.

4

D78700

BUSHING

pump mounting plate

1шт.

5

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT ferry head, 1/2" - 16 NC x 1", grade 8

4шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

7

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special

2шт.

Use P/N 495-81025 Non-heat treated washer

1шт.

7a

E20161

SHIM,0.50mm Thk

1шт.

8

E99671

SPACER

plate

2шт.

9

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

10

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

11

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

12

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

special

2шт.

Use P/N 495-81025 Non-heat treated washer

1шт.

13

D78701

BUSHING

SPACER plate, lower

2шт.

14

D122463

SUPPORT

GUIDE belt

2шт.

P/N D122463 deleted per E20-88-18 E20670 Guide to replace it.

1шт.

15

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

16

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

17

D136309

PLATE

hydraulic equipment pump mounting

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Gasoline models only Hex, 3/8"-16 x 1 1/2", G5

2шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Diesel models only Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

95-6

WASHER,3/8"

flat, 3/8"

3шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

26

D137544

PUMP

ASSEMBLY variable displacement, parts list Figure 6-160 and 6-162, diesel models only

2шт.

26

D136764

PUMP

ASSEMBLY variable displacement, parts list Figure 6-164 and 6-166, gasoline models only

2шт.

26

87297996

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

2шт.

26

87297997

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

2шт.

27

D134544

PUMP

ASSEMBLY hydraulic, equipment, parts list Figure 8-204, diesel models only

1шт.

27

D136386

PUMP

ASSEMBLY hydraulic, equipment, parts list Figure 8-206, gasoline models only

1шт.
