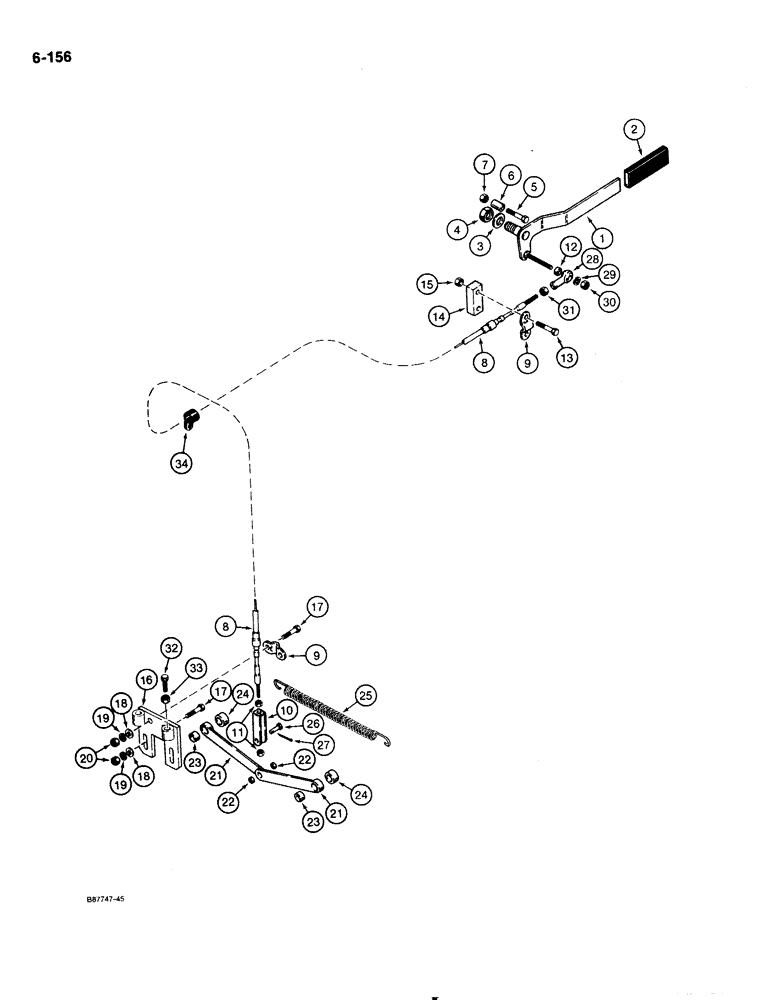

Запчасти Case IH 1818 (6-156) - BELT TENSION CONTROLS (06) - POWER TRAIN

1

D134270

HANDLE

belt clutch

1шт.

2

D128417

TRANSMISSION SLEEVE

GRIP handle

1шт.

3

195-545

WASHER,3/4", SAE

flat, 3/4", plated

1шт.

4

131-83

NUT,3/4"-10

NUT hex, self locking, 3/4" - 10 NC

1шт.

5

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

6

D88214

SPACER

handle

1шт.

7

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

1шт.

D139326

CABLE

ASSEMBLY control, Includes: Ref. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

CABLE control

1шт.

9

D121608

CLAMP

cable

2шт.

10

D78423

CLEVIS

cable

1шт.

11

129-122

NUT,5/16"-24, G5

2шт.

12

R46103

SPACER

clutch cable

1шт.

13

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

D77920

PLATE

spacer

1шт.

15

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

2шт.

16

E20029

BRACKET

cable mounting

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

18

95-6

WASHER,3/8"

flat, 3/8"

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

D123215

LINK

ASSEMBLY control, Includes: Ref. 21-23

2шт.

21

D123214

LINK

control

1шт.

22

D78229

BUSHING

small

1шт.

23

D78233

BUSHING

large

1шт.

24

T28521

SPACER

link assembly, Replaces: P/N T28521

2шт.

25

D134736

SPRING

tension

1шт.

26

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

27

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

28

D59922

BALL JOINT

JOINT ball, 3/8" - 24 NF

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, 3/8" - 24 NF, plated

1шт.

32

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

33

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, self locking, 3/8" - 16 NC

2шт.

34

49838

CLAMP

control cable, uses existing hardware to mount pump mounting shaft on left hand side of machine

1шт.
