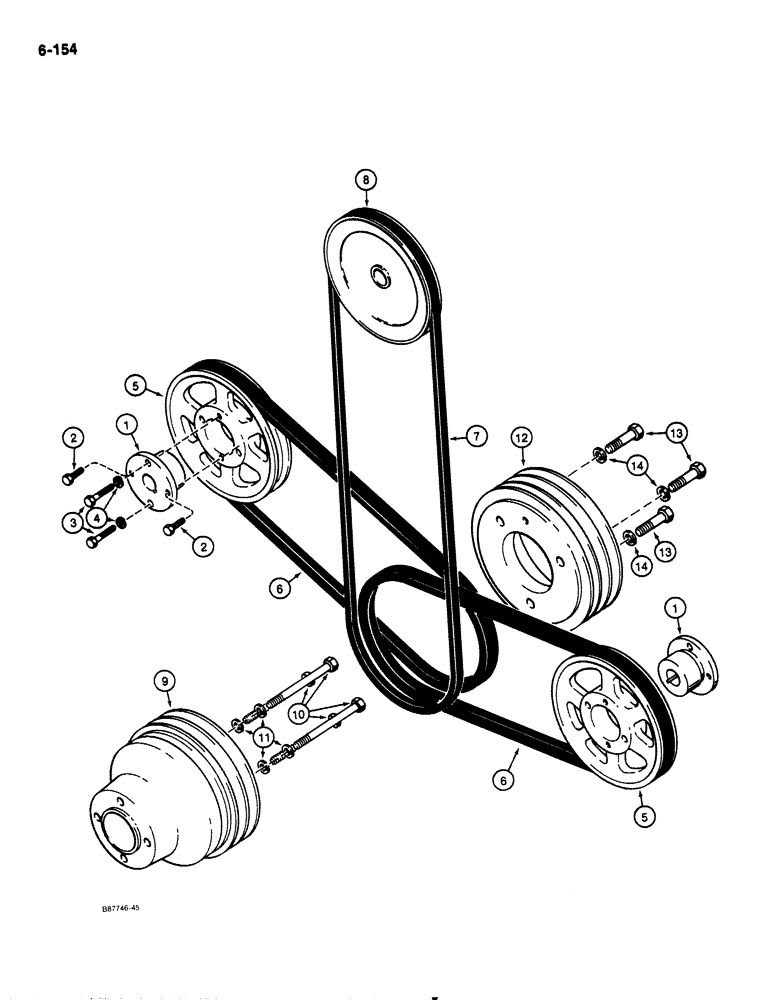

Запчасти Case IH 1818 (6-154) - SHEAVES AND DRIVE BELTS (06) - POWER TRAIN

D120028

BUSHING

ASSEMBLY sheave, Includes: Ref. 1-2

2шт.

1

NSS

NOT SOLD SEPARAT

BUSHING sheave

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3

113-21

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

hex head, 1/4" a- 20 NC x 1-1/4"

4шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

5

D120024

PULLEY

SHEAVE variable displacement pumps, gasoline models only

2шт.

5

D121239

SHEAVE

variable displacement pumps, diesel models only

2шт.

6

D136236

BELT,12.70 mm W x 851.00 mm L

Engine to Variable Displacement Pumps 12.70 mm W x 851.00 mm L

2шт.

7

D136235

BELT,9.53 mm W x 1219.20 mm L

Engine to Hydraulic Equipment Pump, Gasoline Models Only 9.53 mm W x 1219.20 mm L

1шт.

7

S202900

BELT,1270.00 mm L

V-BELT , Engine to hydraulic equipment pump, Diesel models only 1270.00 mm L

1шт.

8

D136310

SHEAVE

hydraulic equipment pump

1шт.

9

D136206

SHEAVE

engine, gasoline models only

1шт.

10

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

Gasoline models only Hex, 5/16"-18 x 3 1/2", G5

4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Gasoline models only 5/16"

4шт.

12

D121936

SHEAVE

engine, diesel models only

1шт.

13

514-702

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

hex head, 10 mm - 1.25 x 35 mm 8.8, diesel models only

3шт.

14

892-1110

LOCK WASHER,M10

WASHER lock, 10 mm, plated, diesel models only

3шт.
