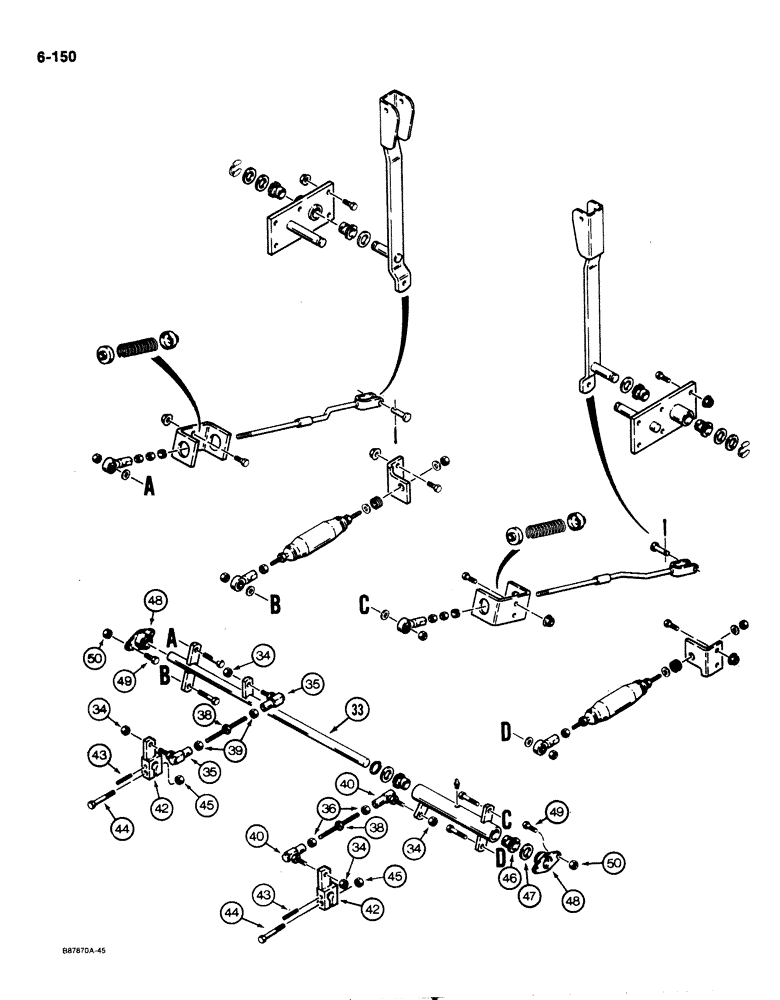

Запчасти Case IH 1818 (6-150) - FORWARD AND REVERSE PUMP CONTROL LEVERS AND LINKAGE (06) - POWER TRAIN

33

D136222

SHAFT

mounting

1шт.

34

231-2446

NUT,3/8"-24, GB

NUT hex, self locking, 3/8" - 24 NF, plated

4шт.

35

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, 3/8" - 24 NF, shaft

2шт.

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

L.H. thread

1шт.

36

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, 3/8" - 24 NF, plated

2шт.

38

H435922

ROD

control, pump, Replaces: P/N E99690

2шт.

39

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

2шт.

40

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, 3/8" - 24 NF, pump control arm

2шт.

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

L.H. thread

1шт.

42

D136223

LINK

ARM control, pump

2шт.

43

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

44

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

45

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC

2шт.

46

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon

2шт.

47

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, spacer

1шт.

48

L48412

FLANGED BEARING

BEARING self aligning

2шт.

49

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

50

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC

4шт.

51

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

52

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC

6шт.

53

A26462

WASHER

special

2шт.

54

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.
