(4-144) - COLD START AID,110 VOLTS-OPTNL, N. AMERICA ONLY, 240 VOLTS-OPTNL, NOT AVAIL. IN N. AMERICA

Запчасти Case IH 1818 (4-144) - COLD START AID,110 VOLTS-OPTNL, N. AMERICA ONLY, 240 VOLTS-OPTNL, NOT AVAIL. IN N. AMERICA (04) - ELECTRICAL SYSTEMS

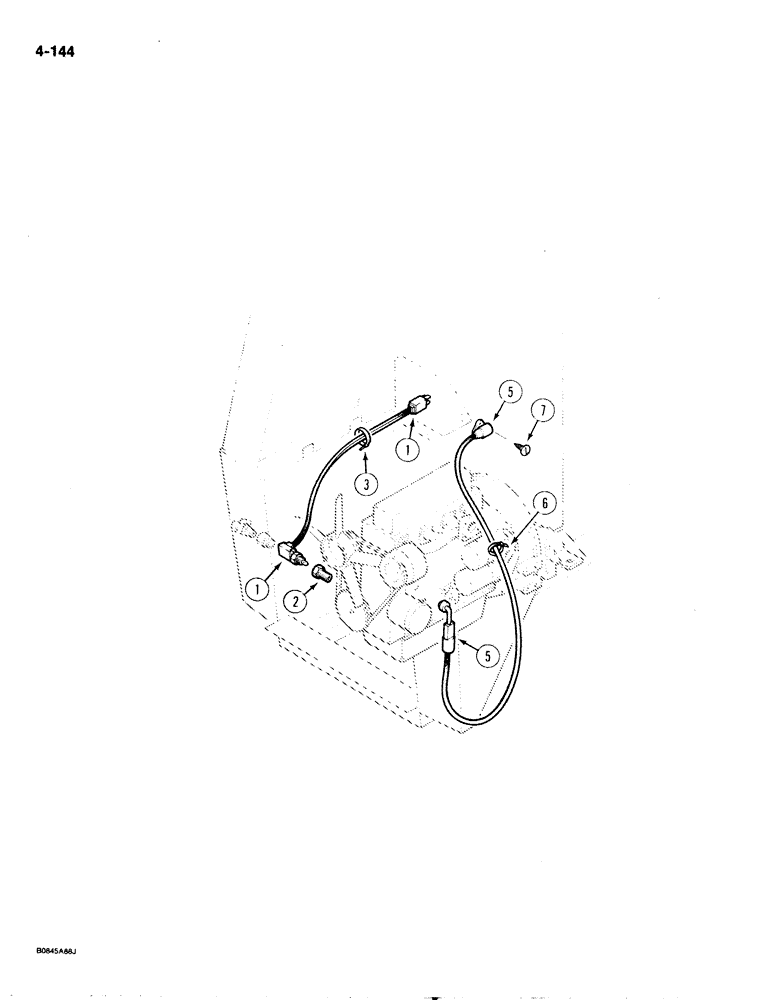

Схема запчастей Case IH 1818 - (4-144) - COLD START AID,110 VOLTS-OPTNL, N. AMERICA ONLY, 240 VOLTS-OPTNL, NOT AVAIL. IN N. AMERICA (04) - ELECTRICAL SYSTEMS
5
3
6
1
1
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1959636C1

RESISTOR

HEATER block

1шт.

Optional, P/N E20748 Heater-Block available

1шт.

2

221-604

REDUCER,Hex, 1" x 3/4" NPT

1" x 3/4" NPT

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

5

E20287

HEATER

ASSEMBLY cylinder block

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW self tapping to battery box

2шт.
