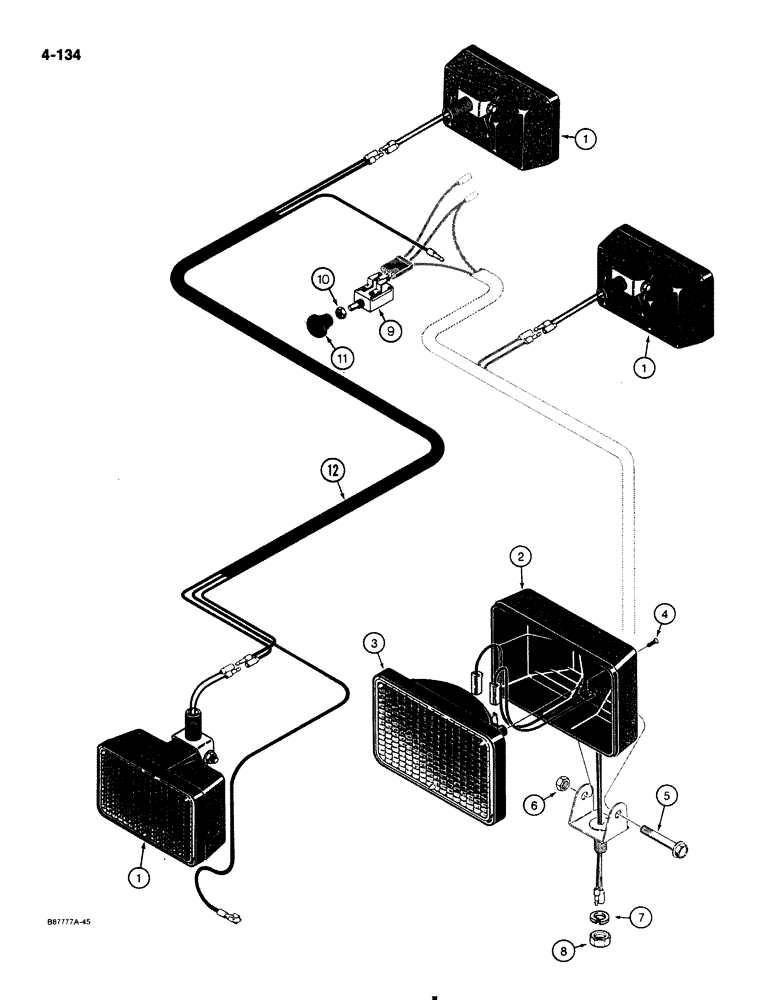

Запчасти Case IH 1818 (4-134) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

H672846

INTERIOR LIGHT

LAMP ASSEMBLY flood, Includes: Ref. 2-8

3шт.

2

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

3

N14646

INTERIOR LIGHT

LAMP sealed beam

1шт.

4

187-625

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW pan head, self tapping, No. 8 x 1/2"

2шт.

5

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, 5/16" - 18 NC, plated

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

9

D74330

SWITCH

lamp, Includes: Ref. 10

1шт.

10

N7557

NUT

hex, 3/8" - 24 NF, special

1шт.

11

D95781

BUTTON

KNOB lamp switch

1шт.

12

D134075

HARNESS

lamp

1шт.
