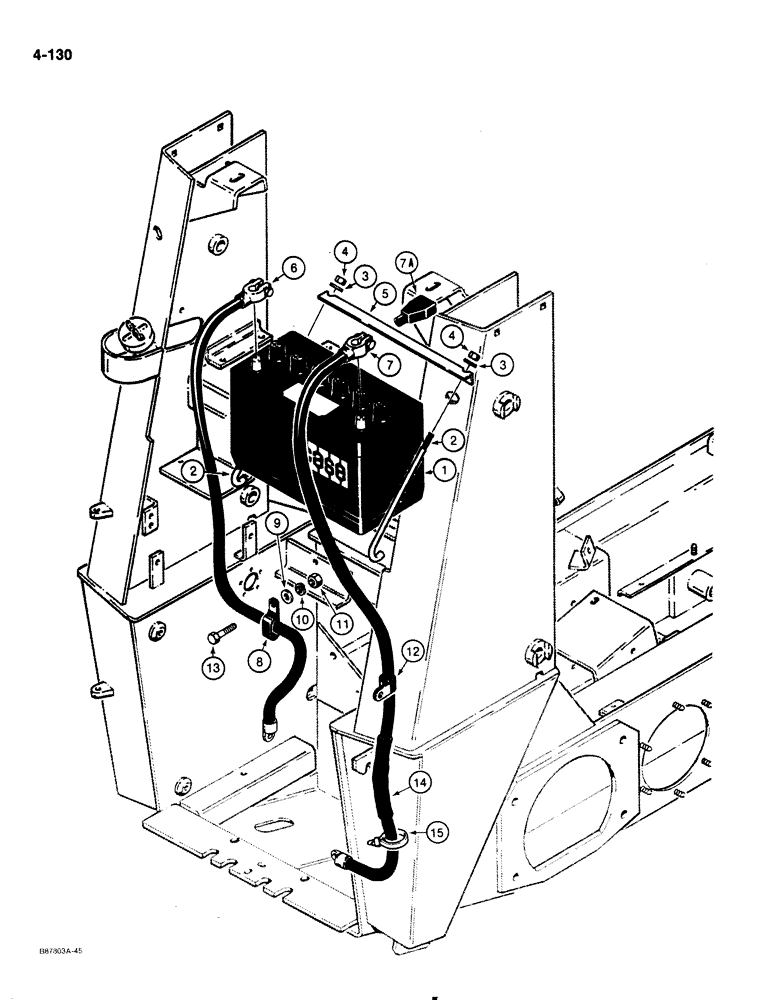

Запчасти Case IH 1818 (4-130) - BATTERY AND CABLES, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

BCM24

BATTERY

dry, 12 volt, service replacement

1шт.

2

D59707

BOLT

J, battery

2шт.

3

195-104

WASHER,3/8"

flat, , plated 3/8"

2шт.

4

131-52

NUT,3/8"-16, GC

NUT hex, self locking, 3/8" - 16 NC, plated

2шт.

5

D59706

ANGLE

battery hold down

1шт.

6

D136984

CABLE

battery, negative

1шт.

7

D136982

CABLE

battery, positive, Includes: Ref. 7A

1шт.

7a

A27072

COVER

BOOT battery cable, positive

1шт.

8

D47783

CLAMP

P-type, negative battery cable and rear harness

1шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, 5/16" - 18 NC, plated

1шт.

12

49838

CLAMP

positive battery cable, uses existing lift cylinder hydraulic tube clamp mounting hardware on right hand side of chassis

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

131-931

FLANGE NUT,Flg, USR, 5/16"-18

5/16

1шт.

14

R40777

CONDUIT

protective, plastic

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.
