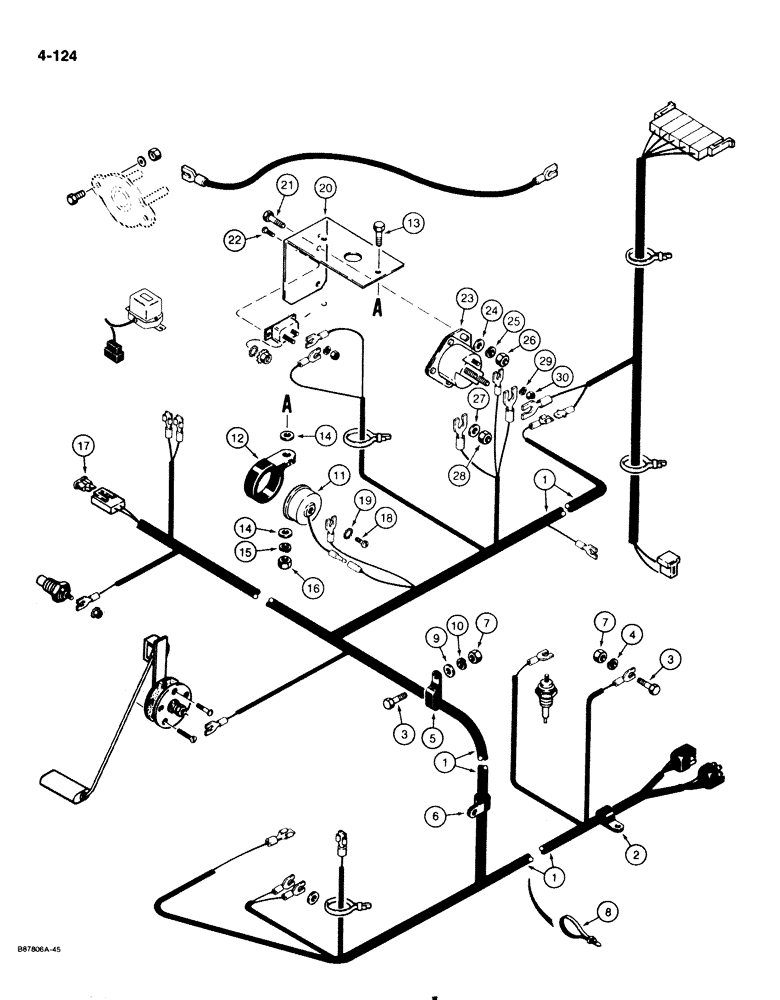

Запчасти Case IH 1818 (4-124) - REAR HARNESS, DIESEL MODELS (04) - ELECTRICAL SYSTEMS

1

D136028

HARNESS

rear

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, uses existing lift and bucket cylinder hydraulic tube vertical clamp mounting hardware on right hand side of chassis

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

5

D47783

CLAMP

harness, uses existing lift cylinder hydraulic tube clamp mounting hardware on right hand side of chassis

1шт.

6

49838

CLAMP

P-type, rear harness, uses existing lift cylinder hydraulic tube horizontal clamp mounting hardware on lower right hand side of chassis, not used

3шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, 5/16" - 18 NC, plated

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.

9

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

D126995

BUZZER

ALARM oil pressure

1шт.

12

D120561

CLAMP

P-type, at oil pressure alarm

1шт.

13

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

14

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

hex, 1/4" - 20 NC, zinc plated

2шт.

17

A149802

FUSE

20 amp

1шт.

18

182-81

SCREW,Slotted Pan Hd, #8-32 x 3/16"

machine, pan head slotted, No. 8 - 32 NC x 3/16"

1шт.

19

193-90

LOCK WASHER,Ext, #8

WASHER, LOCK, Ext, #8

1шт.

20

D139859

MOUNTING PARTS

BRACKET mounting, glow plug relay and circuit breaker

1шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

182-510

SCREW,Sl Pan Hd, #8 - 32 x 1/2"

machine, pan head slotted, No. 8 - 32 NC x 1/2", plated

2шт.

23

A39079

SOLENOID

RELAY glow plug

1шт.

24

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

425-104

NUT,1/4"-20, Cl 5

hex, 1/4" - 20 NC, zinc plated

2шт.

27

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

29

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

30

129-37

NUT,#10-32

1шт.

1959598C1

RESISTOR

INDICATOR glow plug

1шт.
