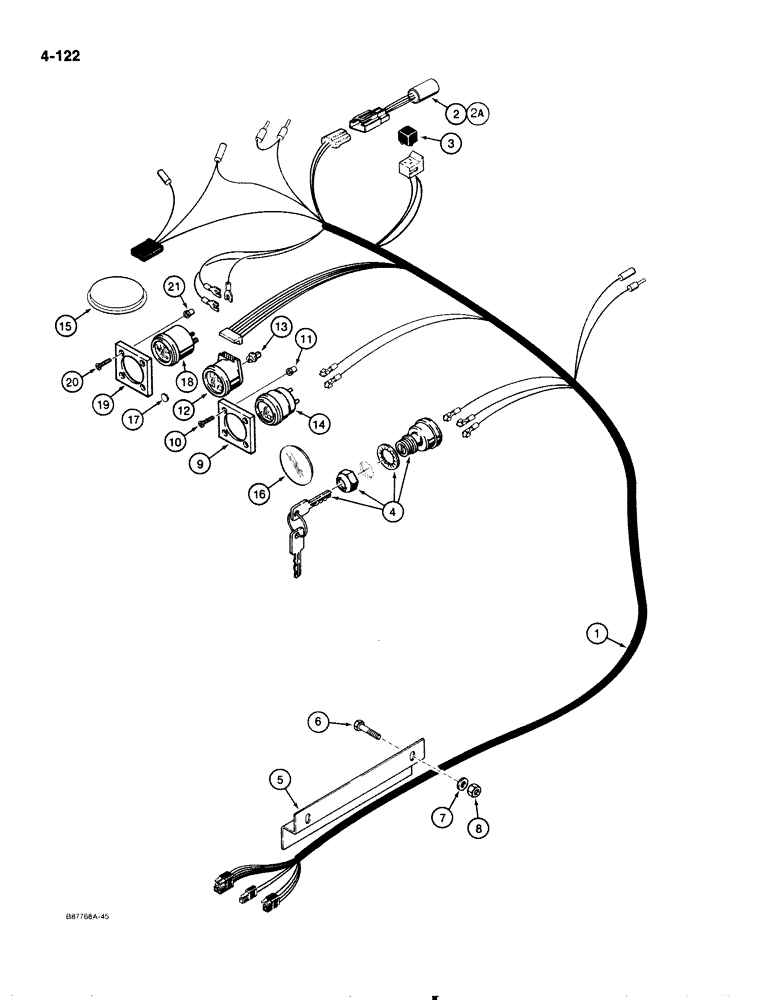

Запчасти Case IH 1818 (4-122) - FRONT HARNESS AND GAUGES, GASOLINE MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

D136753

HARNESS

front

1шт.

2

D137049

ELECTRICAL GAUGE

INDICATOR voltage, Serial Range: -17757377

1шт.

2a

E20252

ELECTRICAL GAUGE

INDICATOR voltage, Start Serial: 17757377

1шт.

3

D128310

RELAY

30 amp

1шт.

4

K203992

IGNITION SWITCH

SWITCH ignition, includes two keys, Includes: Ref. 4A

1шт.

4a

K962338

KEY

KEY ignition switch, set, not shown

1шт.

5

D136931

ANGLE

COVER front harness

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

8

231-1445

NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC, plated

3шт.

9

D121637

COVER

warning lamps and gauges

2шт.

10

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6 - 32 NC x 7/8"

8шт.

11

D121600

ISOLATOR

cover mounting screw

8шт.

12

D136661

BRACKET

GAUGE warning light, hydraulic and air filter, engine oil pressure, and alternator, Includes: Ref. 13

1шт.

13

N8320

BULB

gauge

4шт.

14

D121644

GAUGE

HOURMETER engine

1шт.

15

D93716

PLUG,73.mm ID x 88.9mm OD

plastic, 3" (76 mm) diameter

2шт.

16

E20256

PLUG

rubber, 2-1/8" (54 mm) diameter, if used

2шт.

17

353-401

PLUG,Dome, .312" hole, Nylon

nylon, 5/16"

8шт.

18

D121645

FUEL GAUGE

GAUGE fuel, if used

1шт.

19

D121637

COVER

fuel gauge, if used

1шт.

20

179-164

SCREW,Cross Oval Hd, #6 - 32 x 7/8"

machine, Phillips head, No. 6 - 32 NC x 7/8", if used

4шт.

21

D121600

ISOLATOR

cover mounting screw, if used

4шт.
