(4-118) - STARTER KITS, GASOLINE MODELS

Запчасти Case IH 1818 (4-118) - STARTER KITS, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

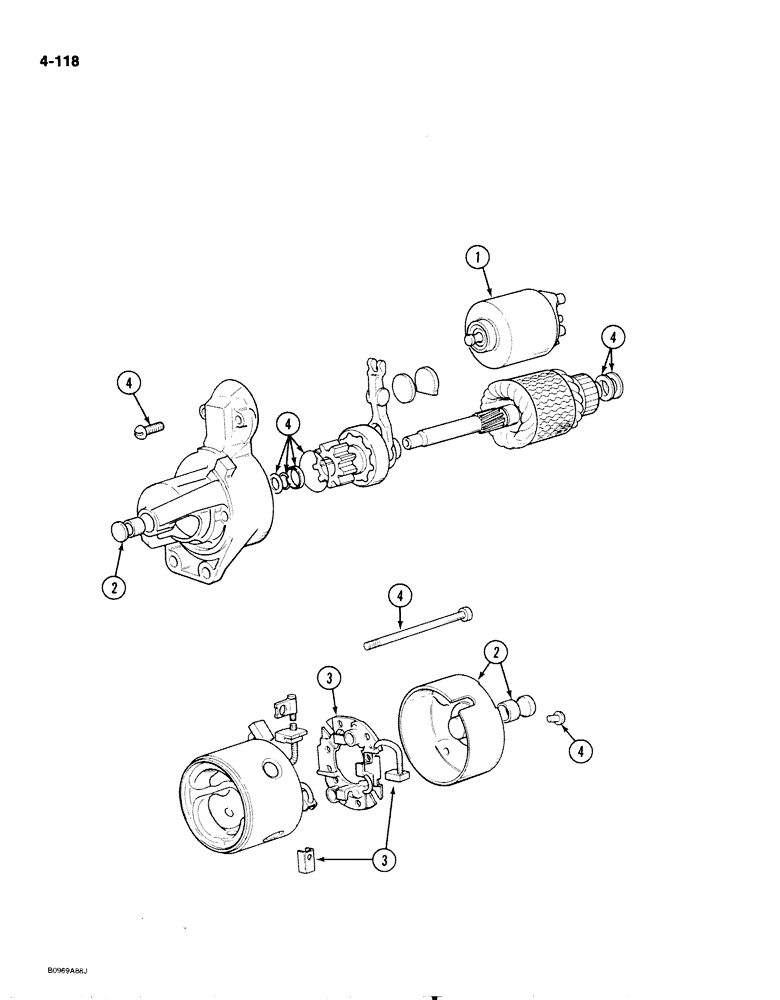

Схема запчастей Case IH 1818 - (4-118) - STARTER KITS, GASOLINE MODELS (04) - ELECTRICAL SYSTEMS
3
4
1
4
2
4
2
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1959099C1

SOLENOID SWITCH

KIT starter solenoid

1шт.

2

1959100C1

SET OF PARTS

KIT starter bushing

1шт.

3

1959101C1

SET

KIT starter brush and holder assembly

1шт.

4

1959103C1

SET OF PARTS

KIT starter hardware and dust seal

1шт.
