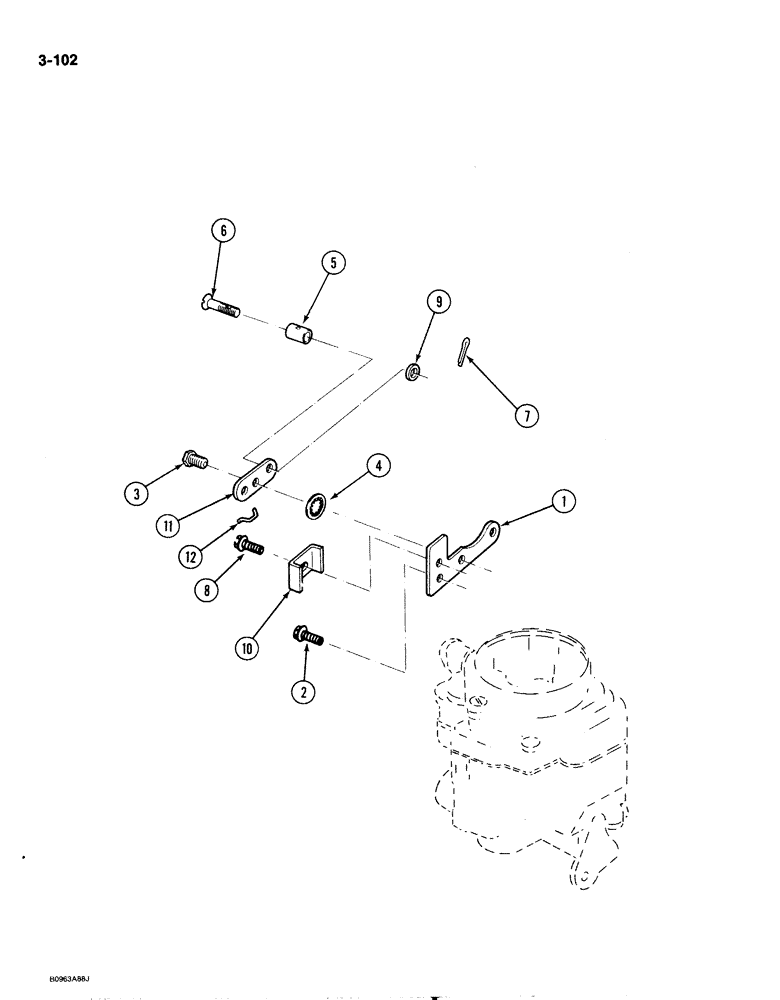

Запчасти Case IH 1818 (3-102) - CHOKE CONTROL, GASOLINE MODELS (03) - FUEL SYSTEM

1

1959084C1

LEVER

BRACKET choke cable

1шт.

2

1959085C1

SCREW

hex washer head, No. 10 locking

1шт.

3

1959086C1

SPECIAL BOLT,#10 - 32 x 3/8"

SCREW, No. 10, special

1шт.

4

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

5

74248C1

BUSHING

SWIVEL choke lever

1шт.

6

169-131

BOLT,Fil Hd, 8" - 32 x 5/16"

SCREW machine, Fillister head, No. 8 - 32 NC x 5/16", plated

1шт.

7

74246C1

LINCH PIN

PIN cotter

1шт.

8

1959078C1

CAPTIVE WASHER SCREW

SCREW washer head, slotted, No. 10

2шт.

9

1959087C1

WASHER

7/32 x 3/8" x 18 gauge

1шт.

10

N7433

CLAMP

choke cable

1шт.

11

1959083C1

LEVER

choke

1шт.

12

77108C1

SPLIT PIN/SAFETY PIN

LINK choke cable

1шт.
