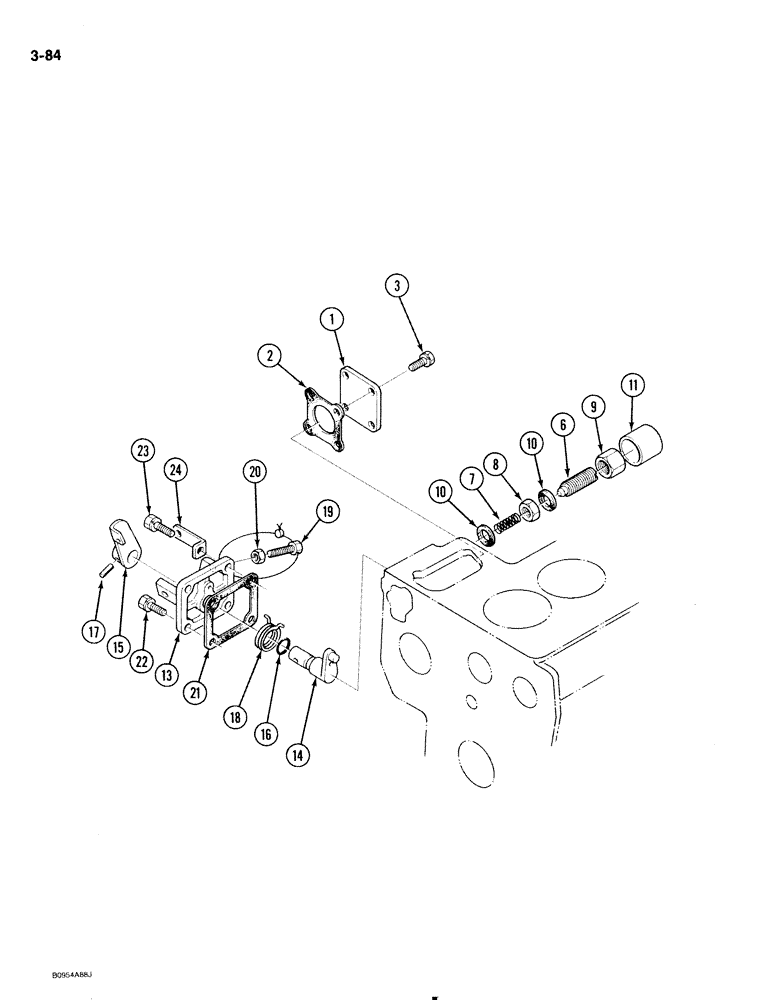

Запчасти Case IH 1818 (3-084) - IDLER AND ENGINE STOP LEVER, DIESEL MODELS (03) - FUEL SYSTEM

1

1959320C1

PLATE

COVER oil pump

1шт.

2

1959321C1

GASKET

oil pump

1шт.

3

1959322C1

BOLT

oil pump cover

4шт.

1959323C1

ADJUSTER

KIT idler, Includes: Ref. 6-11 and P/N 1959324C1

1шт.

1959324C1

BOLT,Adj

SCREW ASSEMBLY adjusting, Includes: Ref. 6-7

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW adjusting, order P/N 1959324C1 screw assembly

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING order P/N 1959324C1 screw assembly

1шт.

8

1959327C1

NUT

M8

1шт.

9

1959328C1

NUT

cap, M8

1шт.

10

1959329C1

WASHER

GASKET adjusting screw, 8.3 x 13 x 15 mm

2шт.

11

1959330C1

CAP,M14.6 x 19mm

adjusting screw

2шт.

12

1959331C1

LEVER

ASSEMBLY engine stop, Includes: Ref. 13-18

1шт.

13

1959332C1

COVER

injection pump

1шт.

14

1959333C1

SHAFT

ASSEMBLY lever, Includes: Ref. 15

1шт.

15

1959335C1

LEVER

engine stop

1шт.

16

1959336C1

O-RING

shaft

1шт.

17

1959337C1

PIN

lever

1шт.

18

1959338C1

SPRING

return

1шт.

19

1959339C1

PIN

BOLT spring return stop, M6 x 30 mm

1шт.

20

1959205C1

NUT

cover stud, M6

1шт.

21

1959342C1

GASKET

breather

1шт.

22

1959155C1

BOLT

BOLT water cover

3шт.

23

1959215C1

BOLT

bearing case cover

1шт.

24

1959343C1

BRACKET

HOLDER wire

1шт.
