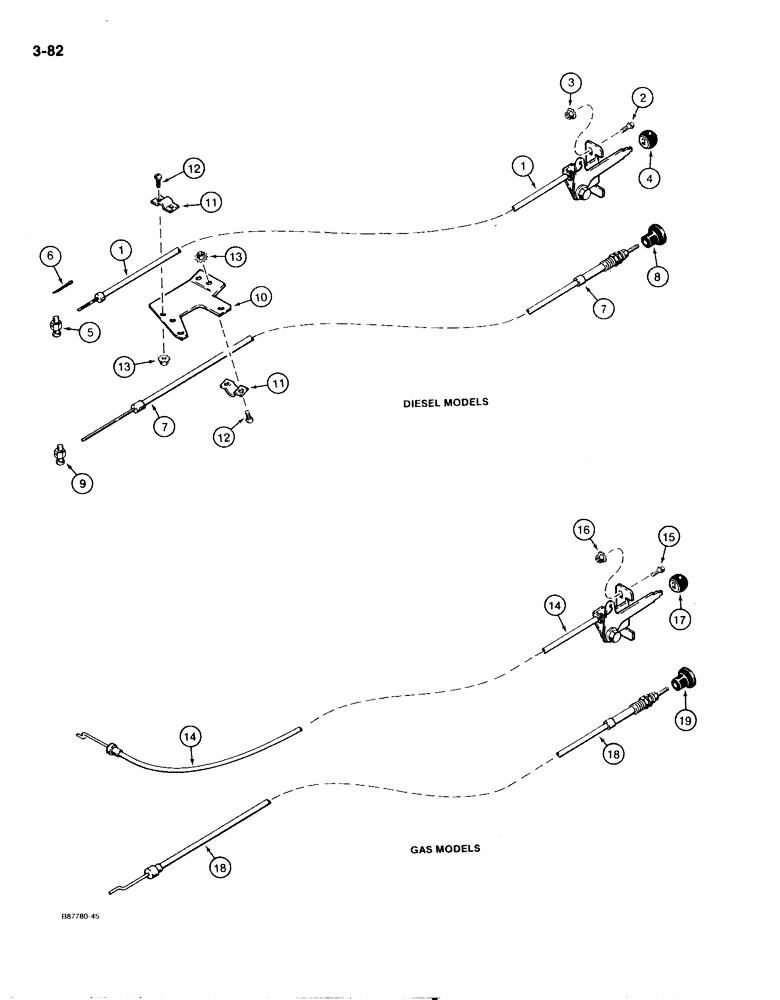

Запчасти Case IH 1818 (3-082) - ENGINE CONTROLS (03) - FUEL SYSTEM

1

D121231

CABLE

throttle control, diesel models only

1шт.

2

163-15

SCREW,Hex, #10 - 24 x 5/8"

machine, hex head, No. 10 - 24 NC x 5/8", plated, diesel models only

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER No. 10 - 24 NC, plated, diesel models only

2шт.

4

H244434

KNOB

throttle control cable, diesel models only

1шт.

5

D92852

PIVOT

RETAINER throttle control cable, diesel models only

1шт.

Ref: #5 Use P/N E20993 pivot assy per EMISC 89-52 dated 2/6/90.

1шт.

6

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Diesel models only 3/32" x 1/2"

1шт.

7

D122111

CABLE

fuel shut-off, diesel models only

1шт.

8

D91273

KNOB

fuel shut-off cable, diesel models only

1шт.

9

L32208

CLAMP

RETAINER fuel shut-off cable, diesel models only

1шт.

10

E20290

PLATE

cables Replaces: D122051, diesel models only

1шт.

11

E20291

CLAMP

cables to plate Replaces: D81500, diesel models only

2шт.

12

182-124

SCREW,Sl Pan Hd, #10 - 24 x 7/16"

machine, pan head slotted, No. 10 - 24 NC x 7/16", diesel models only

4шт.

13

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER No. 10 - 24 NC, plated, diesel models only

4шт.

14

D122466

CABLE

throttle control, gasoline models only

1шт.

15

163-15

SCREW,Hex, #10 - 24 x 5/8"

machine, hex head, No. 10 - 24 NC x 5/8", plated, gasoline models only

2шт.

16

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER No. 10 - 24 NC, plated, gasoline models only

2шт.

17

H244434

KNOB

throttle control cable, gasoline models only

1шт.

18

D122689

CABLE

choke control, gasoline models only

1шт.

19

D91274

KNOB

choke control cable, gasoline models only

1шт.
