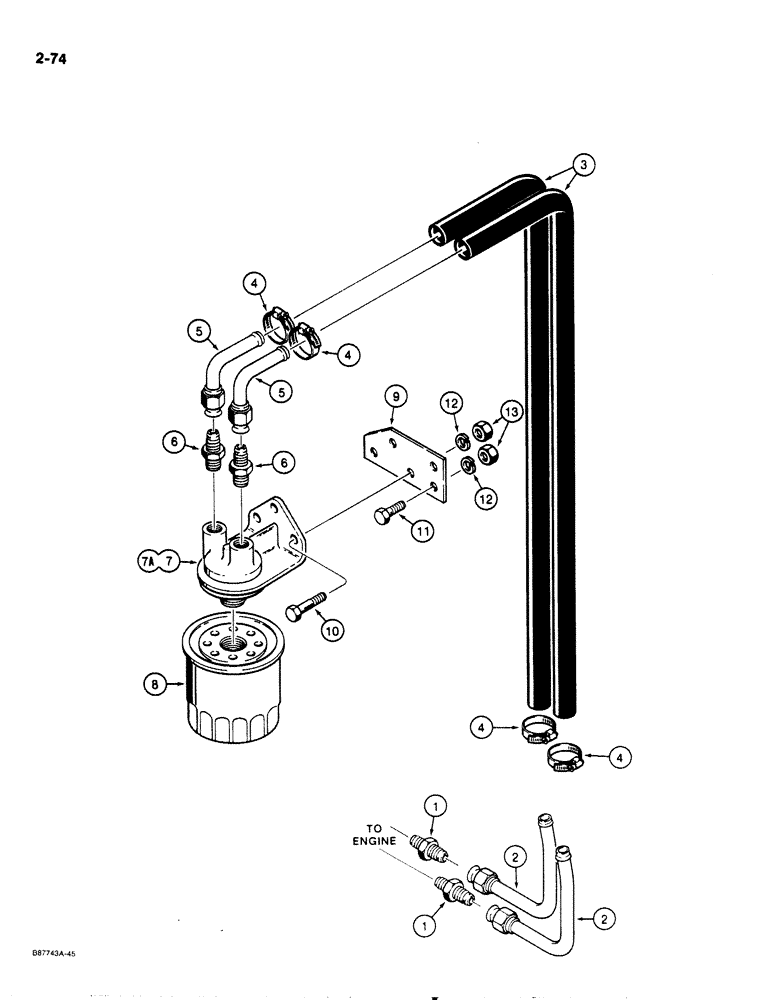

Запчасти Case IH 1818 (2-074) - ENGINE OIL FILTER AND LINES, GASOLINE MODELS ONLY (02) - ENGINE

1

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER straight, tubes to engine

2шт.

2

D139864

PIPE

TUBE from engine, Replaces: P/N D93591

2шт.

3

L77718

HOSE

1/2" (13 mm) ID x 24" (610 mm) long, engine to filter, cut from P/N S118466 bulk hose, see below

2шт.

4

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP hose

4шт.

5

D93660

TUBE,0.5" OD x 2.4, 2.37" L

hose to filter adapter

2шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, tubes to filter head

2шт.

7

D120904

FITTING

HEAD filter, Includes: Ref. 7A

1шт.

7a

D120903

FITTING

NIPPLE filter attaching

1шт.

8

D62845

ENGINE OIL FILTER

FILTER engine oil, 95 mm long

1шт.

This filter will not fit most 1818 loaders. Use the 70 mm P/N H436531. The problem seems to be on later units.

1шт.

9

D139436

PLATE

mounting

1шт.

10

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

13

9635082

NUT,5/16" - 18, Gr 5

5шт.

S118466

HOSE,0.50" ID x 300.00"

- Bulk, 1/2", Used for Ref. 3 0.50" ID x 300.00"

1шт.

14

E20696

SWITCH

engine oil temp., not shown

1шт.
