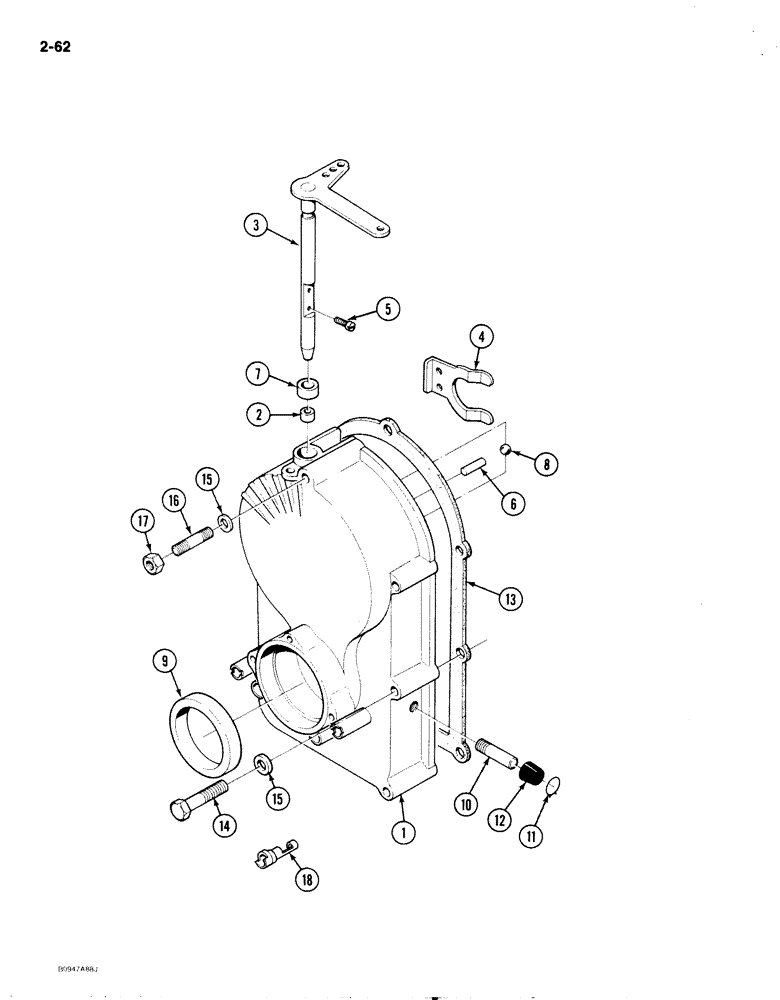

Запчасти Case IH 1818 (2-062) - FRONT GEAR COVER, GASOLINE MODELS (02) - ENGINE

1959051C1

HOUSING

COVER ASSEMBLY front gear, Includes: Ref. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

COVER front gear, order P/N 1959051C1 cover assembly

1шт.

2

N9591

BUSHING

Governor shaft

1шт.

3

N9625

SHAFT

AND ARM governor

1шт.

4

N9592

FORK

YOKE governor shaft

1шт.

5

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

machine, pan Phillips head, No. 8 - 32 NC x 3/8", plated

2шт.

6

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

7

N9594

OIL SEAL

oil, governor shaft

1шт.

8

211-204

BALL

3/16", grade 25, chrome alloy steel

1шт.

9

N9595

OIL SEAL

oil, crankshaft

1шт.

10

77037C1

PIPE,0.23" ID, 0.29" OD, 15" Length

TUBE fuel pump vacuum

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

cap retaining #4, 0.25/0.62 Type F Worm

1шт.

12

1959054C1

CAP

vacuum port

1шт.

13

N9596

GASKET

cover

1шт.

14

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

15

N9602

WASHER

copper, 21/64 x 9/16 x 1/16"

5шт.

16

1959055C1

STUD

gear cover

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

N7413

HOLDER

CLIP retaining, control rod to governor shaft

1шт.
