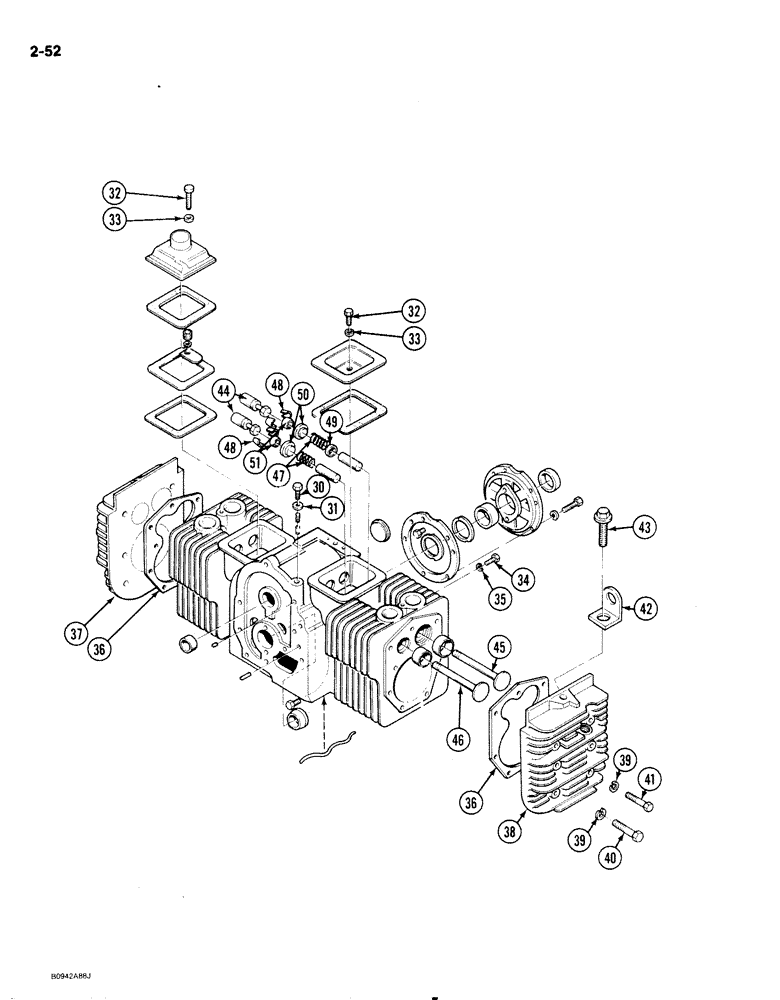

Запчасти Case IH 1818 (2-052) - CYLINDER BLOCK, GASOLINE MODELS (02) - ENGINE

30

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

hex head, 3/8" - 24 NF x 7/8", plated

1шт.

31

N9614

WASHER

copper, 29/64 x 9/16 x 1/16 inch

1шт.

32

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

hex head, 1/4" - 20 NC x 1-3/4", plated

2шт.

33

N9560

WASHER

copper, 17/64 x 7/16 x 1/32

2шт.

34

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

35

N9614

WASHER

copper, 29/64 x 9/16 x 1/16 inch

2шт.

36

N7478

GASKET

cylinder head

2шт.

37

1959012C1

HEAD (CYLINDER)

HEAD cylinder, right hand

1шт.

38

1959013C1

HEAD (CYLINDER)

HEAD cylinder, left hand

1шт.

39

N9561

WASHER

special, cylinder head bolts

18шт.

40

1959015C1

CAPSCREW,Hex, 5/16" x 2 3/8", Gr 8

BOLT hex head, 2-3/8" long, special

10шт.

41

1959016C1

CAPSCREW,Hex, 5/16" x 2", Gr 8

BOLT hex head, 2" long, special

8шт.

42

1959018C1

BRACKET

lifting

2шт.

43

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

44

N9573

TAPPET

valve, standard size

4шт.

44

N9613

TAPPET

valve, 0.002" 0.06 mm oversize

4шт.

44

N9574

TAPPET

valve, 0.005" 0.13 mm oversize

4шт.

45

1959007C1

VALVE,ENGINE,INLET,S

VALVE intake

2шт.

46

1959008C1

VALVE, ENG EXHAUST,

VALVE exhaust

2шт.

47

1959009C1

SPRING

valve

4шт.

48

1959010C1

VALVE POPPET

KEEPER valve

8шт.

49

1959011C1

SEAL

valve stem, intake

2шт.

50

1959014C1

SPRING CUP

RETAINER valve spring

4шт.

51

1959017C1

BUSHING

CAP valve

4шт.

52

1959019C1

GASKET KIT

KIT gasket, engine complete, (1) Washer, (2) Valve Stem Seal, (1) N7444 Seal, (1) N7422 O-ring Seal, (1) N9570 Seal, (1) N9595 Seal, (1) N9594 Seal, (1) N9607 Gasket Plate, (1) Gasket, (1) Exhaust Manifold Gasket, (1) 1995945C1 Gasket

1шт.

52

1959020C1

GASKET KIT

KIT gasket, valve grind, carbon removal

1шт.
