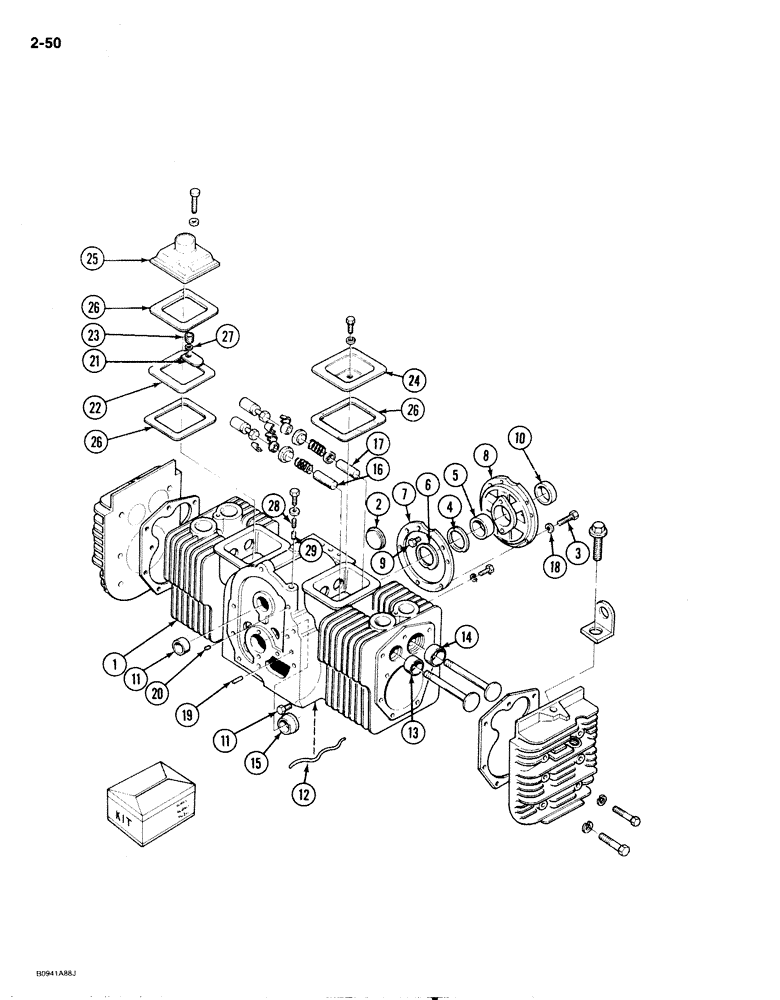

Запчасти Case IH 1818 (2-050) - CYLINDER BLOCK, GASOLINE MODELS (02) - ENGINE

A173767

ENGINE ASSEMBLY

BLOCK ASSEMBLY gasoline, cylinder, Replaces: P/N 1959000C1, complete Carb. I.G.N. heads, intake, Includes: Ref. 1-20

1шт.

1959112C1

BASIC ENGINE

BLOCK ASSEMBLY short block

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder, order P/N 1959000C1 block assembly

1шт.

2

41-26

PLUG

expansion, 1-5/8"

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

4

N9564

WASHER

SHIM main bearing

1шт.

5

N9619

CRANKSHAFT BEARING

BEARING main, plate end, standard size

1шт.

5

N9620

CRANKSHAFT BEARING

BEARING main, plate end, 0.002" 0.06 mm undersize

1шт.

5

N9621

CRANKSHAFT BEARING

BEARING main, plate end, 0.010" 0.26 mm undersize

1шт.

5

N9622

CRANKSHAFT BEARING

BEARING main, plate end, 0.020" 0.50 mm undersize

1шт.

5

N9623

CRANKSHAFT BEARING

BEARING main, plate end, 0.030" 0.76 mm undersize

1шт.

6

N9566

WASHER

thrust

2шт.

7

N9567

GASKET

, Serial Range: plate-block

1шт.

8

N9568

LARGE PLATE

PLATE crankshaft bearing

1шт.

9

N9571

SCREW,#8 x 11/32"

drive, bearing stop

4шт.

10

N9570

OIL SEAL

oil, crankshaft rear

1шт.

11

N9569

CAMSHAFT BEARING,1.50" OD x 0.31"

BEARING camshaft

2шт.

12

N9643

TUBE,5.56, 0.12" L

LINE oil transfer, cylinder block

1шт.

13

N7392

SEAT, VALVE

INSERT exhaust valve seat, standard size

2шт.

13

N7393

BUSHING

INSERT exhaust valve seat, 0.002" 0.06 mm oversize

2шт.

13

N7394

BUSHING

INSERT exhaust valve seat, 0.005" 0.13 mm oversize

2шт.

13

N7395

BUSHING

INSERT exhaust valve seat, 0.010" 0.26 mm oversize

2шт.

13

N7396

BUSHING

INSERT exhaust valve seat, 0.025" 0.64 mm oversize

2шт.

14

N9576

SEAT, VALVE

INSERT intake valve seat, standard size

2шт.

14

N9577

BUSHING

INSERT intake valve seat, 0.002" 0.06 mm oversize

2шт.

14

N9578

SEAT, VALVE

INSERT intake valve seat, 0.005" 0.13 mm oversize

2шт.

14

N9579

BUSHING

INSERT intake valve seat, 0.010" 0.26 mm oversize

2шт.

14

N9580

BUSHING

INSERT intake valve seat, 0.025" 0.64 mm oversize

2шт.

15

N9584

CRANKSHAFT BEARING

BEARING main, flywheel end, standard size

1шт.

15

N9585

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.002" 0.06 mm undersize

1шт.

15

N9586

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.010" 0.26 mm undersize

1шт.

15

N9587

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.020" 0.50 mm undersize

1шт.

15

N9588

CRANKSHAFT BEARING

BEARING main, flywheel end, 0.030" 0.76 mm undersize

1шт.

16

1959004C1

GUIDE

valve, exhaust

2шт.

17

1959006C1

GUIDE

valve, intake

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

19

N7398

PIN

gear cover, alignment

2шт.

20

N7405

PLUG

core hole

1шт.

21

N9558

VALVE POPPET

VALVE breather reed

1шт.

22

N9559

SHEET

BAFFLE left hand valve cover

1шт.

23

N9557

SPRING

breather valve

1шт.

24

N9562

COVER

valve, right hand

1шт.

25

N9644

COVER

valve, left hand

1шт.

26

N9563

GASKET

valve cover

3шт.

27

195-517

WASHER,1/4"

flat, 17/64", plated

1шт.

28

N9598

SPRING

bypass valve

1шт.

29

N9599

PIN

POPPET bypass valve

1шт.

A173767

ENGINE ASSEMBLY

ENGINE complete, gasoline

1шт.
