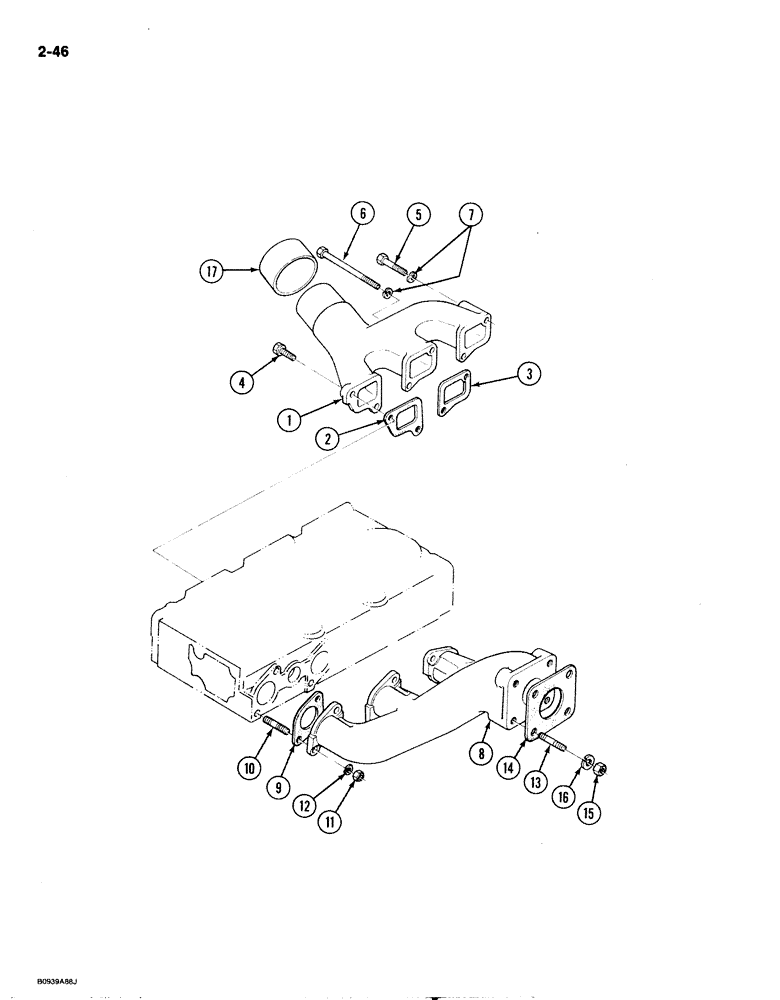

Запчасти Case IH 1818 (2-046) - INTAKE MANIFOLD & EXHAUST MANIFOLD, DIESEL MODELS (02) - ENGINE

1

1959254C1

MANIFOLD

intake

1шт.

2

1959256C1

MANIFOLD GASKET

intake manifold No. 1 cylinder

1шт.

3

1959273C1

MANIFOLD GASKET

intake manifold No. 2 and No. 3 cylinders

2шт.

4

1959215C1

BOLT

manifold

4шт.

5

1959257C1

BOLT

manifold

1шт.

6

1959258C1

BOLT

manifold, M8 x 80 mm

1шт.

7

1959206C1

SPRING WASHER

lock

2шт.

8

1959260C1

MANIFOLD

exhaust

1шт.

9

1959262C1

GASKET

exhaust manifold

3шт.

10

1959263C1

STUD

exhaust manifold, M6 x 28 mm

6шт.

11

1959205C1

NUT

cover stud, M6

6шт.

12

1959206C1

SPRING WASHER

lock, exhaust manifold nut

6шт.

13

1959264C1

STUD

M10

2шт.

14

1959266C1

GASKET

muffler

1шт.

15

1959268C1

NUT

M10

2шт.

16

1959270C1

WASHER, LOCK

WASHER lock

2шт.

17

1959271C1

CAP

intake manifold

1шт.
