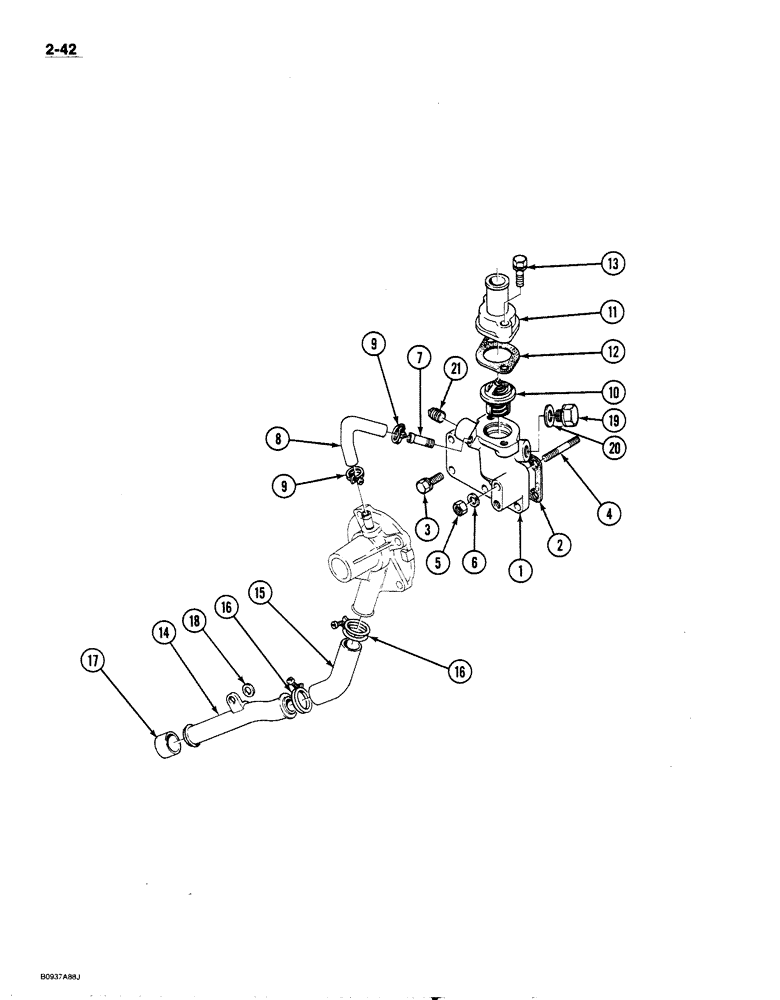

Запчасти Case IH 1818 (2-042) - THERMOSTAT, HOUSING AND TUBES, DIESEL MODELS (02) - ENGINE

1

1959431C1

FLANGE

HOUSING thermostat

1шт.

2

1959432C1

GASKET

housing

1шт.

3

1959319C1

BOLT

idler gear shaft

6шт.

4

1959433C1

STUD

housing

1шт.

5

1959205C1

NUT

cover stud, M6

1шт.

6

1959206C1

SPRING WASHER

lock

1шт.

7

1959434C1

PIPE,6.5 mm ID, 10.5 mm OD, 27 mm Length

TUBE water return, at housing

1шт.

8

1959435C1

PIPE,9 mm ID, 16 mm OD, 66, 46 mm Length

TUBE water return, at water pump

1шт.

9

1959436C1

CLAMP

tube

2шт.

10

1959437C1

THERMOSTAT

water

1шт.

11

1959438C1

COVER

thermostat

1шт.

12

1959439C1

GASKET

thermostat cover

1шт.

13

1959440C1

BOLT

thermostat cover

2шт.

14

1959441C1

PIPE

TUBE water, lower

1шт.

15

1959442C1

PIPE,25 mm ID, 33 mm OD, 66 mm Length

TUBE water, upper

1шт.

16

1959443C1

CLAMP

tube

2шт.

17

1959444C1

CAP

tube

2шт.

18

1959409C1

WASHER

flat

1шт.

19

1959445C1

PLUG

thermostat housing

1шт.

20

1959446C1

WASHER

GASKET thermostat housing plug

1шт.

21

1959447C1

PLUG

thermostat housing

1шт.
