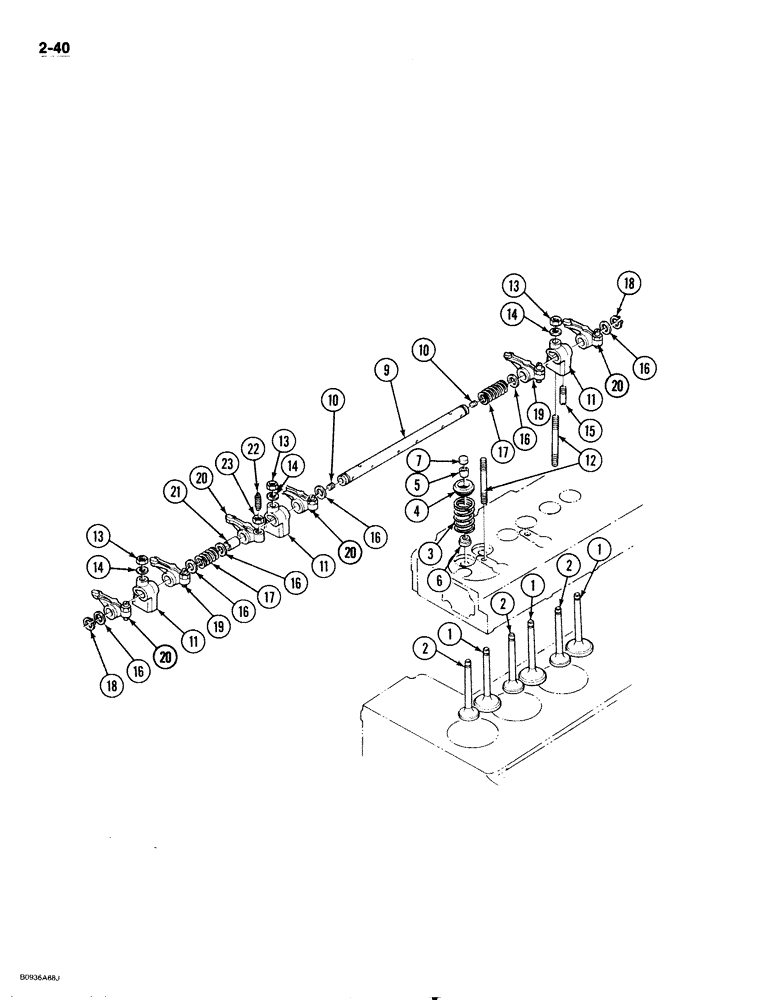

Запчасти Case IH 1818 (2-040) - VALVE MECHANISM AND ROCKER ARM, DIESEL MODELS (02) - ENGINE

1

1959274C1

VALVE

inlet

3шт.

2

1959275C1

VALVE

exhaust

3шт.

3

1959276C1

SPRING

valve

6шт.

4

1959277C1

RETAINER

valve spring

6шт.

5

1959278C1

SPACER

KEEPER valve spring

12шт.

6

1959279C1

SEAL

valve stem

6шт.

7

1959280C1

PLUG

CAP valve

6шт.

1959281C1

SHAFT

ASSEMBLY rocker arm, Includes: Ref. 9-10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT rocker, order 1959281C1 shaft assembly

1шт.

10

1959283C1

SET SCREW

set, rocker arm, M6 x 9 mm

2шт.

11

1959286C1

BRACKET

rocker arm

3шт.

12

1959287C1

STUD

bracket, M7 x 87 mm

3шт.

13

1959288C1

NUT

bracket stud, M7

3шт.

14

1959289C1

WASHER

flat, 7.5 x 15 x 1.6 mm

3шт.

15

1959290C1

SET SCREW

set, rocker arm, M4 x 26 mm

1шт.

16

1959291C1

WASHER

rocker arm shaft, 11.2 x 17 x 1 mm

6шт.

17

1959292C1

SPRING

rocker arm

2шт.

18

1959293C1

RING, SNAP

RING snap, shaft

2шт.

1959294C1

ARM

ASSEMBLY rocker, Includes: Ref. 20-21

6шт.

20

NSS

NOT SOLD SEPARAT

ARM rocker, order P/N 1959294C1 arm assembly

6шт.

21

1959296C1

BUSHING

rocker arm

6шт.

22

1959297C1

ADJUSTMENT SCREW

adjusting, M7 x 25.5 mm, Includes: Ref. 23

6шт.

23

1959298C1

NUT

adjusting screw, M7

6шт.
