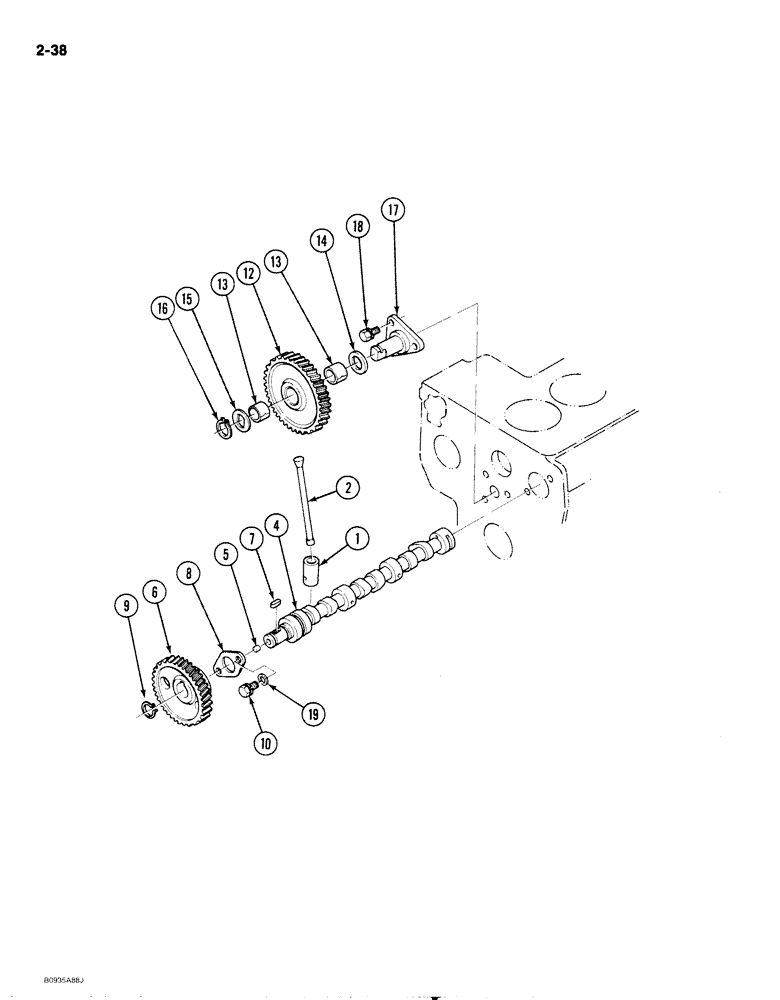

Запчасти Case IH 1818 (2-038) - CAMSHAFT, DIESEL MODELS (02) - ENGINE

1

1959299C1

BUSHING

TAPPET valve, push rod

6шт.

2

1959300C1

PUSH ROD

ROD push

6шт.

1959301C1

CAMSHAFT

ASSEMBLY engine, Includes: Ref. 4 - 9

1шт.

4

1959302C1

CAMSHAFT

engine, Includes: Ref. 5

1шт.

5

1959304C1

PLUG

camshaft

2шт.

6

1959305C1

GEAR

camshaft

1шт.

7

1959306C1

KEY

camshaft

1шт.

8

1959307C1

PLATE

camshaft

1шт.

9

1959308C1

RING, SNAP

RING snap, camshaft

1шт.

10

1959344C1

BOLT

2шт.

11

1959312C1

GEAR

ASSEMBLY idler, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR idler, order 1959312C1 gear assembly

1шт.

13

1959314C1

BUSHING

idler gear

2шт.

14

1959315C1

COLLAR

COLLER idler gear No. 1 cylinder

1шт.

15

1959316C1

COLLAR

idler gear No. 2 cylinder

1шт.

16

1959317C1

RING, SNAP

RING snap, idler gear

1шт.

17

1959318C1

SHAFT

idler gear

1шт.

18

1959319C1

BOLT

idler gear shaft

3шт.

19

1959206C1

SPRING WASHER

lock

2шт.
