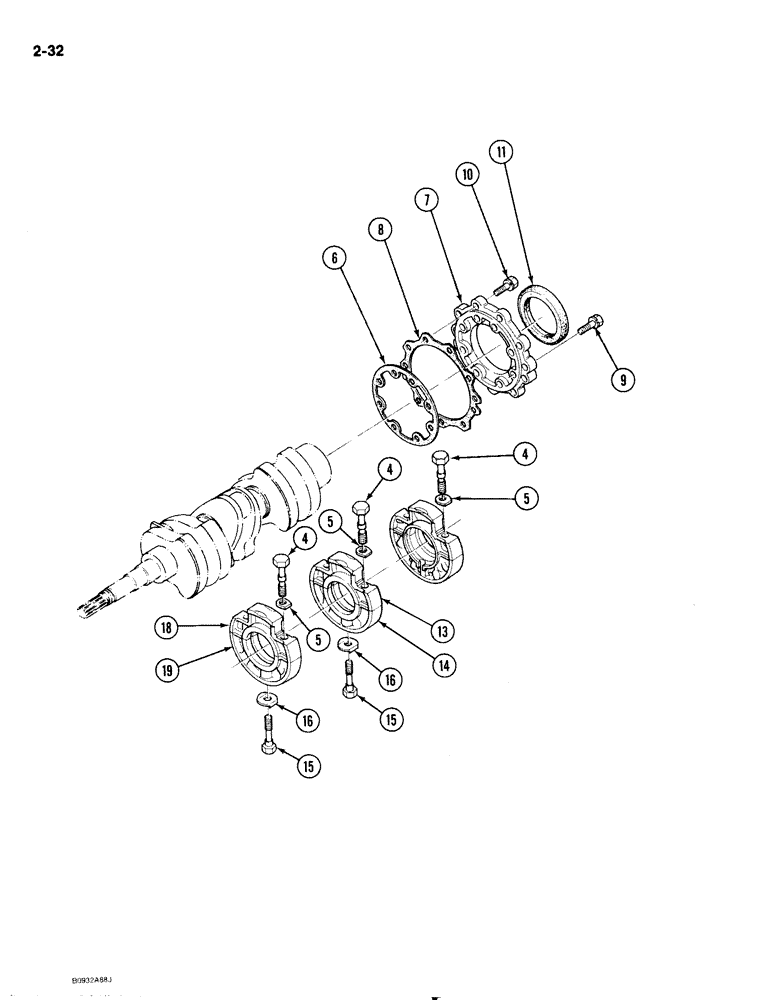

Запчасти Case IH 1818 (2-032) - MAIN BEARING CASES, DIESEL MODELS (02) - ENGINE

1959207C1

HOUSING

CASE ASSEMBLY, bearing No. 1 cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

CASE half, upper, order 1959207C1 case assembly

1шт.

3

NSS

NOT SOLD SEPARAT

CASE half, lower, order 1959207C1 case assembly

1шт.

4

1959210C1

BOLT

bearing case, M7 x 53 mm

6шт.

5

1959211C1

WASHER

bearing case, 6 mm ID

6шт.

6

1959212C1

GASKET

bearing case

1шт.

7

1959213C1

COVER

bearing case

1шт.

8

1959214C1

GASKET

bearing case cover

1шт.

9

1959215C1

BOLT

bearing case cover

9шт.

10

1959216C1

BOLT

bearing case cover

8шт.

11

1959217C1

OIL SEAL

oil

1шт.

1959218C1

HOUSING

CASE ASSEMBLY, main bearing No. 2 cylinder, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

CASE half, upper, order 1959218C1 case assembly

1шт.

14

NSS

NOT SOLD SEPARAT

CASE half, lower, order 1959218C1 case assembly

1шт.

15

1959221C1

BOLT

bearing case, M8 x 44 mm

2шт.

16

1959222C1

WASHER

bearing case, 9 mm ID

2шт.

1959223C1

HOUSING

CASE ASSEMBLY, main bearing No. 3 cylinder, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

CASE half, upper, order 1959223C1 case assembly

1шт.

19

NSS

NOT SOLD SEPARAT

CASE half, lower, order 1959223C1 case assembly

1шт.
