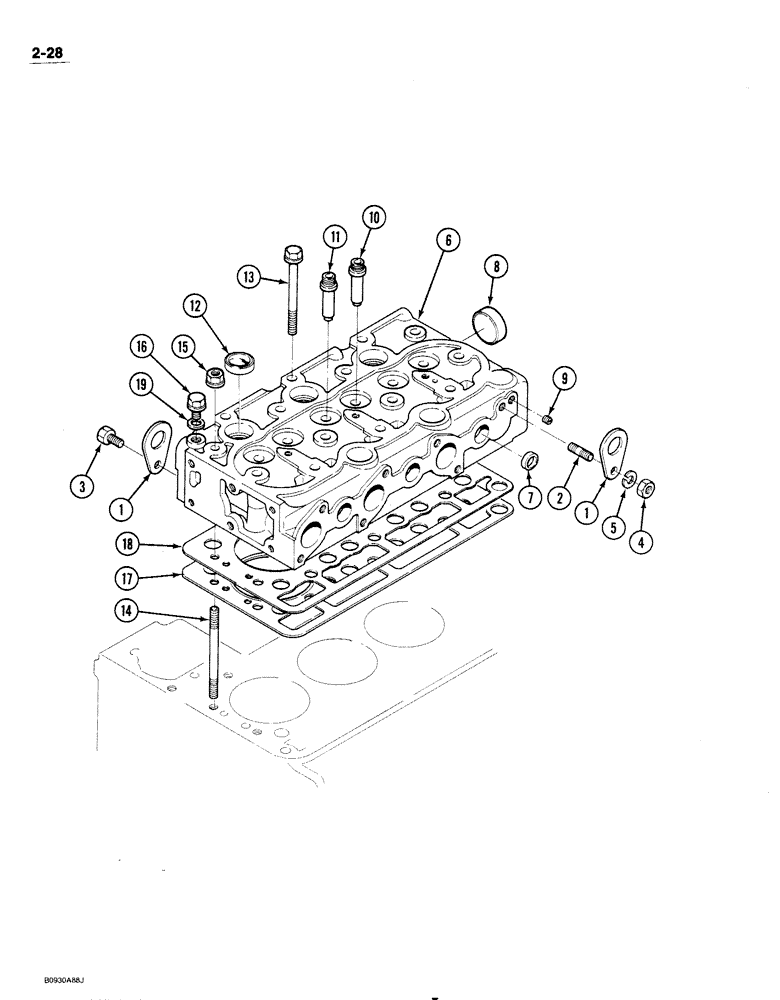

Запчасти Case IH 1818 (2-028) - CYLINDER HEAD, DIESEL MODELS (02) - ENGINE

1

1959151C1

HOOK

EYE lift

2шт.

2

1959169C1

STUD

lift eye

1шт.

3

1959163C1

BOLT

lift eye

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Lift eye

1шт.

5

1959171C1

SPRING WASHER

lock, lift eye

2шт.

1959152C1

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD cylinder, order 1959152C1 head assembly

1шт.

7

1959154C1

PLUG

CAP sealing

5шт.

8

1959124C1

PLUG

CAP sealing

1шт.

9

1959126C1

PLUG

hex pipe, M8 x 7 mm tapered

2шт.

10

1959172C1

GUIDE

inlet valve

3шт.

11

1959173C1

GUIDE

exhaust valve

3шт.

12

1959174C1

CHAMBER

pre-combustion

3шт.

13

1959177C1

BOLT

cylinder head, M9 x 78 mm

14шт.

14

1959178C1

STUD

cylinder head, M9 x 96 mm

1шт.

15

1959179C1

NUT

cylinder head, M9

1шт.

16

1959180C1

PLUG

cylinder head, M16

1шт.

17

1959181C1

CYLINDER HEAD GASKET

cylinder head

1шт.

18

1959183C1

SHIM

cylinder head gasket

1шт.

19

1959185C1

SEALING WASHER

seal

1шт.
