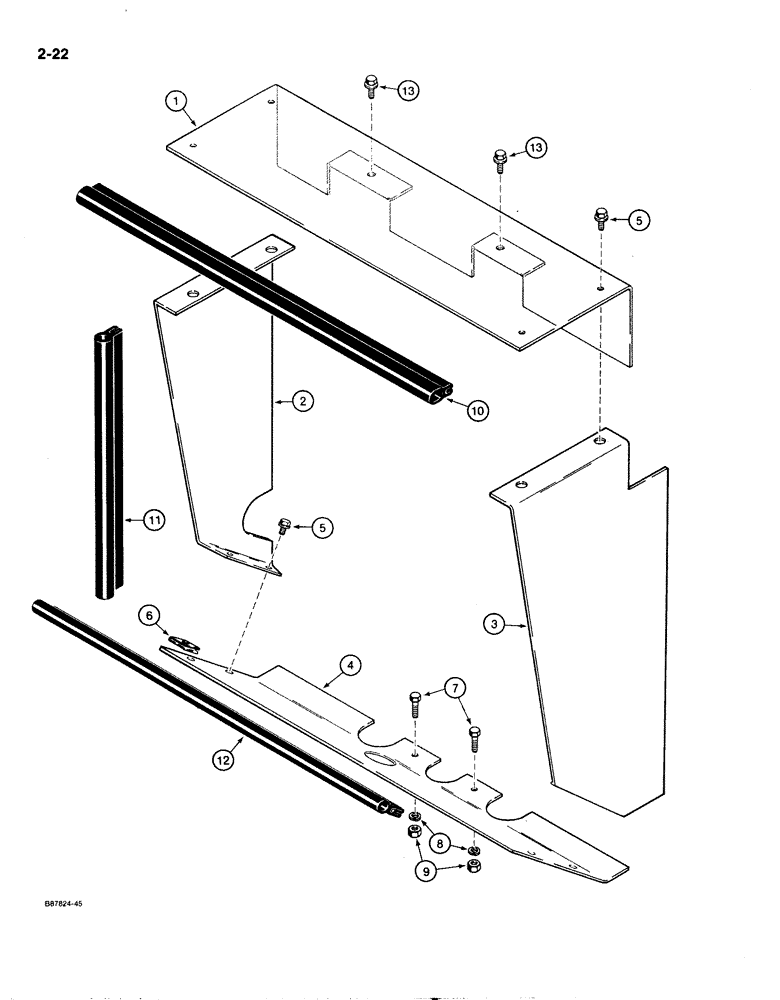

Запчасти Case IH 1818 (2-022) - ENGINE SHROUD, GASOLINE MODELS ONLY (02) - ENGINE

1

D138595

SHROUD

engine, top, upper

1шт.

2

D138597

SHROUD

engine, left hand side

1шт.

3

D138598

SHROUD

engine, right hand side

1шт.

4

D138596

SHROUD

engine, lower

1шт.

5

121-138

BOLT,Hex Flg, #10-24 x 1/2", Serr

hex flange head, self locking, No. 10-24 NC x 1/2", plated

8шт.

6

131-869

SPRING NUT,Ret, J, #10-24

J-type, No. 10 - 24 NC

8шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

D139535

SEAL

shroud, upper

1шт.

11

D134958

SEAL

317 mm, shroud, sides, cut from F43117 bulk seal, see below

2шт.

12

D128489

LINING

SEAL 19-17/32" 496 mm, shroud, lower, cut from F43117 bulk seal, see below

1шт.

13

121-21

SERRATED BOLT,Hex, 1/4" - 20 x 1/2"

hex flange head, self locking, 1/4" - 20 NC x 1/2", plated

2шт.

F43117

SEAL

bulk, 100 ft 30.5 m long

1шт.
