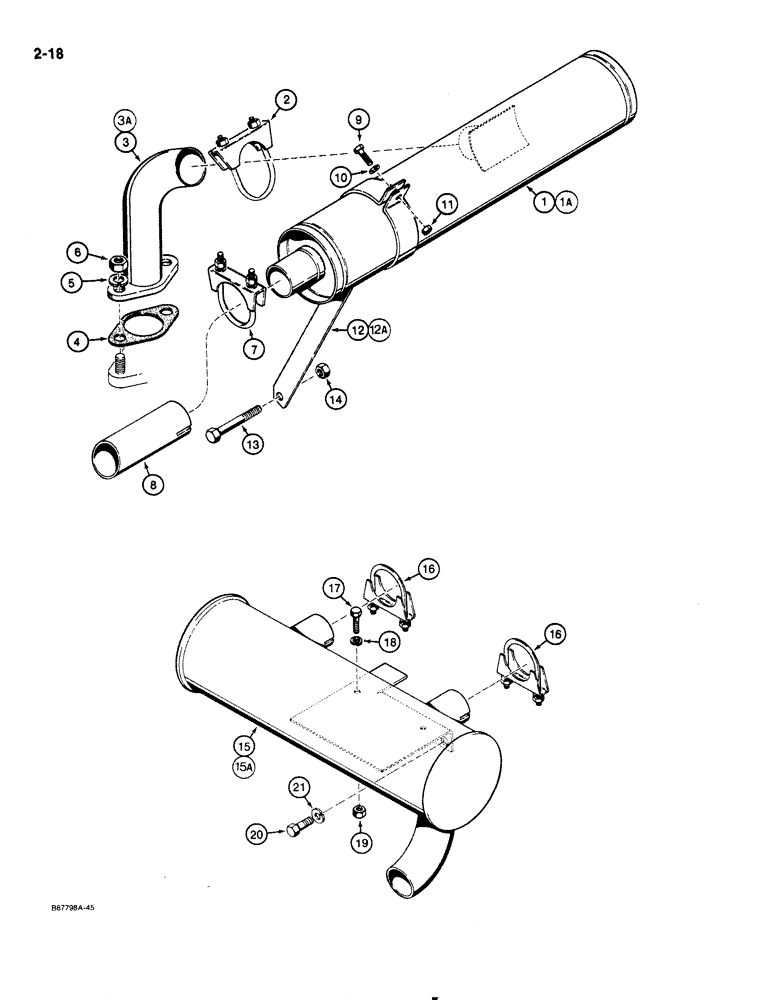

Запчасти Case IH 1818 (2-018) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

A184808

MUFFLER

exhaust, standard, Replaces: D92820, used on diesel models only

1шт.

1a

A184704

MUFFLER

exhaust, spark arrester, used on diesel models only

1шт.

2

L13452

CLAMP,195-3/8" L

exhaust pipe, includes hardware, used on diesel models only

1шт.

3

D122022

PIPE

exhaust, from engine to standard muffler, used on diesel models only

1шт.

3a

E20319

PIPE

exhaust, from engine to spark arrester muffler, used on diesel models only

1шт.

4

D122033

MANIFOLD GASKET

exhaust pipe, used on diesel models only

1шт.

5

1959270C1

WASHER, LOCK

WASHER lock, used on diesel models only

2шт.

6

1959268C1

NUT

hex, used on diesel models only

2шт.

7

D58859

CLAMP

muffler to exhaust extension, includes hardware, used on diesel models only

1шт.

8

E20019

TUBE

EXTENSION muffler exhaust, replaces D122026, used on diesel models only

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Used on diesel models only Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

10

195-103

WASHER,5/16"

flat, , plated, used on diesel models only 5/16"

1шт.

11

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/l6" - 18 NC, plated, used on diesel models only

1шт.

12

D138644

CLAMP

standard, muffler to lower alternator mounting block, used on diesel models only

1шт.

12a

E20317

CLAMP

spark arrester muffler to alternator block, used on diesel models only

1шт.

13

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Used on diesel models only Hex, 5/16"-18 x 2 1/2", G5

1шт.

14

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC, plated, used on diesel models only

1шт.

15

A184666

MUFFLER

exhaust, standard gasoline models, used on gasoline models only

1шт.

15a

A184707

MUFFLER

exhaust, spark arrester gasoline models, used on gasoline models only

1шт.

16

L13452

CLAMP,195-3/8" L

muffler, includes hardware, used on gasoline models only

2шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used on gasoline models only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used on gasoline models only 1/4"

2шт.

19

425-104

NUT,1/4"-20, Cl 5

hex, 1/4" - 20 NC, zinc plated, used on gasoline models only

2шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on gasoline models only Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

21

492-10038

WASHER, LOCK

WASHER lock, 3/8", zinc plated, used on gasoline models only

2шт.
