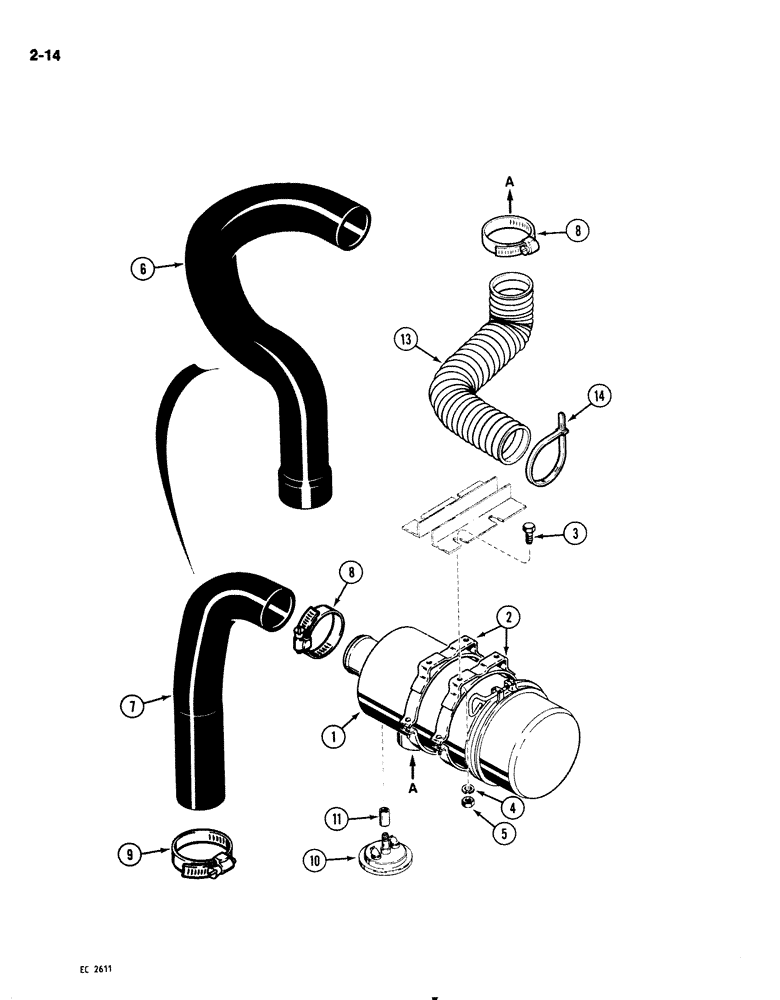

Запчасти Case IH 1818 (2-014) - AIR CLEANER AND MOUNTING PARTS (02) - ENGINE

1

D82572

AIR CLEANER

CLEANER ASSEMBLY air, engine, see Figure 2-16

1шт.

2

D27245

COLLAR CLAMP

BAND air cleaner mounting

2шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

D135953

INTAKE AIR HOSE,44.50 mm ID, 50.80 mm ID, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on gasoline models only 44.50 mm ID, 50.80 mm ID, SAE 20R4 Class D2

1шт.

7

D122095

INTAKE AIR HOSE,44.00 mm ID, SAE J20, SAE 20R4 Class D2

Rubber, Air Cleaner Outlet, Used on diesel models only 44.00 mm ID, SAE J20, SAE 20R4 Class D2

1шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

at air cleaner #28, 1.31/2.25 Type F Worm

2шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

at carburetor, used on gasoline models only #36, 1.81/2.75 Type F Worm

1шт.

10

L103131

INDICATOR

SENDER air cleaner restriction indicator

1шт.

11

221-1335

COUPLING,Pipe, 1/8" NPT

plated Pipe, 1/8" NPT

1шт.

13

E20165

INTAKE AIR HOSE,44.50 mm ID x 560.00 mm

44.50 mm ID x 560.00 mm

1шт.

14

E20232

CLIP

STRAP tie, to loader arm cylinder boss left hand

1шт.
