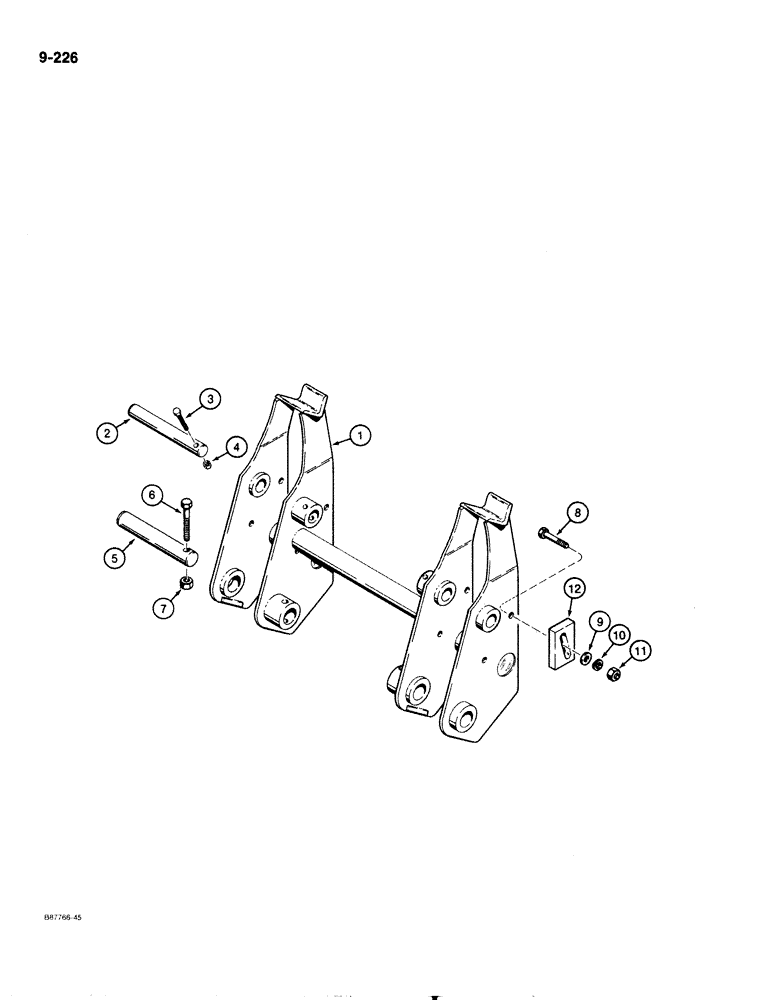

Запчасти Case IH 1818 (9-226) - TOOL TACH (09) - CHASSIS/ATTACHMENTS

1

D138771

BRACKET

TOOL tach, equipment

1шт.

2

D138890

PIN,22.22mm OD x 148mm L

tilt cylinder rod

2шт.

3

26-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

hex head, 5/16" - 18 NC x 2", grade 8

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self locking, 5/16" - 18 NC, plated

2шт.

5

D138891

PIN,25.4mm OD x 149mm L

tach pivot

2шт.

6

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

7

131-217

LOCK NUT

NUT hex, self locking, 3/8" - 16 NC, plated, grade 8

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

D138932

WEDGE

BLOCK bucket aligning

2шт.
