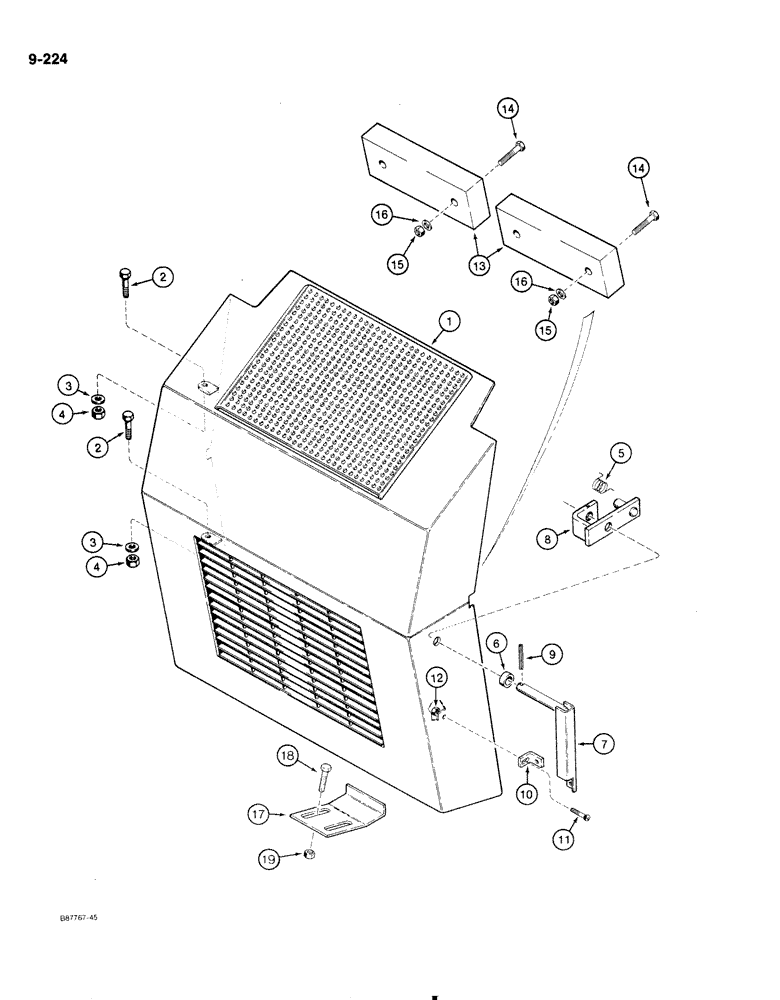

Запчасти Case IH 1818 (9-224) - REAR COUNTERWEIGHT AND SWING OUT DOOR, GASOLINE MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D138730

DOOR

rear swing out

1шт.

2

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

3

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

4

131-70

NUT,1/2"-13, GB

NUT hex, self locking, 1/2" - 13 NC, plated

2шт.

5

D132020

SPRING

latch

1шт.

6

D134827

SPACER

latch

1шт.

7

D134824

HANDLE

rear door

1шт.

8

D134821

LATCH

rear door

1шт.

9

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

10

D124776

BRACKET

ANGLE latch positioning, outer

1шт.

11

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

12

131-931

FLANGE NUT,Flg, USR, 5/16"-18

hex, flange type, special locking, 5/16" - 18 NC

1шт.

13

E99992

WEIGHT

COUNTERWEIGHT rear

2шт.

15

129-107

NUT,5/8"-11, G5

4шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

H434914

SUPPORT

BRACKET rear door, lower

1шт.

18

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

131-938

FLANGE NUT,Flg, USR, 3/8"-16

hex, self locking, 3/8" - 16 NC

2шт.
