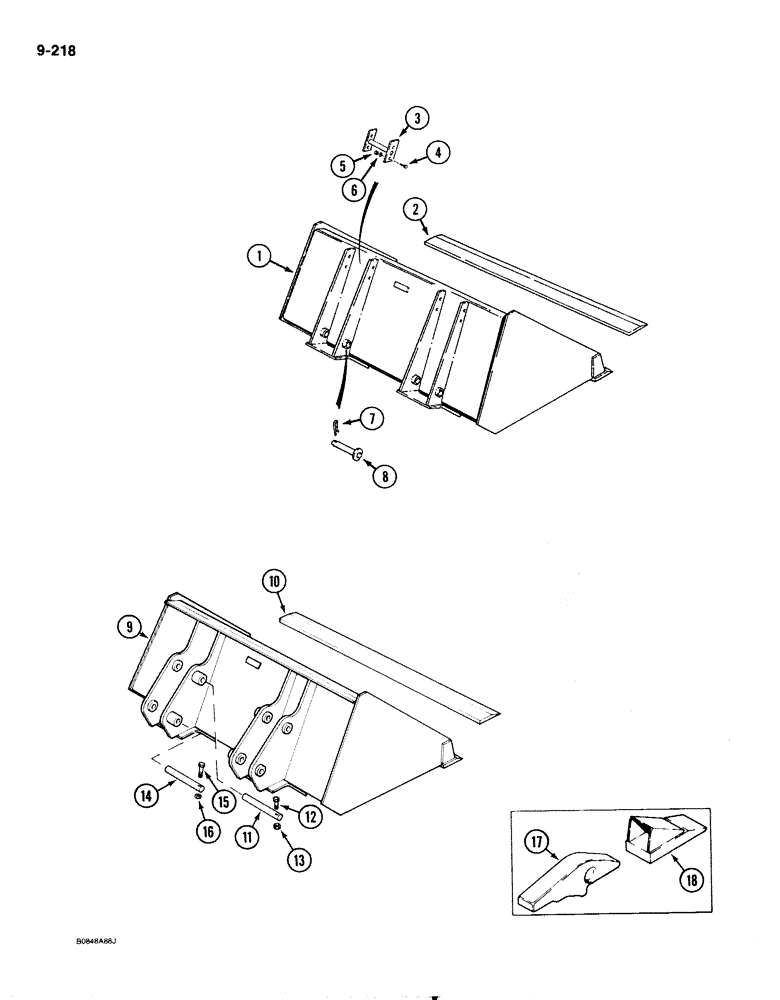

Запчасти Case IH 1818 (9-218) - LOADER BCKT, 35" BCKT, 44" BCKT, BCKTS FOR USE W/OUT TOOL TACH, 35" BCKT, 44" BCKT, BCKT TEETH (09) - CHASSIS/ATTACHMENTS

1

H674523

BUCKET

35" (889 mm) wide, machinery item, order from Machinery Price List, Replaces: P/N D138921

1шт.

Models with Tool Tach

1шт.

2

H674524

BUCKET

EDGE cutting, front, Replaces: P/N D138918, 35" (889 mm) wide bucket

1шт.

Models with Tool Tach

1шт.

3

D61308

PIN

weldment, 35" (889 mm) wide bucket

2шт.

Models with Tool Tach

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

35" (889 mm) wide bucket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

Models with Tool Tach

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

35" (889 mm) wide bucket 1/2"-13, G5

8шт.

Models with Tool Tach

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 35" (889 mm) wide bucket 1/2"

8шт.

Models with Tool Tach

1шт.

7

1978738C1

HAIR PIN COTTER

retaining, Replaces P/N 136-251, 35" (889 mm) wide bucket

2шт.

Models with Tool Tach

1шт.

8

D138886

PIN

loader attachment bar to bucket, 35" (889 mm) wide bucket

2шт.

Models with Tool Tach

1шт.

1

D138918

EDGE, CUTTING

BUCKET, 44" (1118 mm) wide, machinery item, order from Machinery Price List, Includes: Ref. 2-8

1шт.

Models with Tool Tach

1шт.

2

D138892

EDGE, CUTTING

EDGE cutting, front, 44" (1118 mm) wide bucket

1шт.

Models with Tool Tach

1шт.

3

D138882

PIN ASSY.

PIN weldment, 44" (1118 mm) wide bucket

2шт.

Models with Tool Tach

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

44" (1118 mm) wide bucket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

Models with Tool Tach

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

44" (1118 mm) wide bucket 1/2"-13, G5

8шт.

Models with Tool Tach

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , 44" (1118 mm) wide bucket 1/2"

8шт.

Models with Tool Tach

1шт.

7

1978738C1

HAIR PIN COTTER

retaining, Replaces P/N 136-251, 44" (1118 mm) wide bucket

2шт.

Models with Tool Tach

1шт.

8

D138884

PIN

loader attachment bar to bucket, 44" (1118 mm) wide bucket

2шт.

Models with Tool Tach

1шт.

9

H674525

BUCKET

35" (889 mm) wide, machinery item, order from Machinery Price List, Replaces: P/N E20250

1шт.

Models without Tool Tach

1шт.

9

H674526

BUCKET

44" 1118 mm wide, machinery item, order from Machinery Price List, Replaces: P/N H672960, Includes: Ref. 10

1шт.

Models without Tool Tach

1шт.

10

D138892

EDGE, CUTTING

EDGE cutting, front, 44" (1118 mm) wide bucket

1шт.

Models without Tool Tach

1шт.

11

D138890

PIN,22.22mm OD x 148mm L

tilt cylinder rod, 44" (1118 mm) wide bucket

2шт.

Models without Tool Tach

1шт.

12

26-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

hex head, 5/16" - 18 NC x 2", grade 8, 44" (1118 mm) wide bucket

2шт.

Models without Tool Tach

1шт.

13

231-1445

NUT,5/16"-18, GB

NUT hex, self locking, 5/16" - 18 NC, plated, 44" (1118 mm) wide bucket

2шт.

Models without Tool Tach

1шт.

14

D138891

PIN,25.4mm OD x 149mm L

bucket pivot, 44" (1118 mm) wide bucket

2шт.

Models without Tool Tach

1шт.

15

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

44" (1118 mm) wide bucket Hex, 3/8"-16 x 2 1/2", G8

2шт.

Models without Tool Tach

1шт.

16

131-217

LOCK NUT

NUT hex, self locking, 3/8" - 16 NC, plated, grade 8, 44" (1118 mm) wide bucket

2шт.

Models without Tool Tach

1шт.

17

T41165

TOOTH

SHANK tooth, 44" (1118 mm) wide bucket

1шт.

Models without Tool Tach

1шт.

18

T41166

TOOTH

POINT tooth, 44" (1118 mm) wide bucket

1шт.

Models without Tool Tach

1шт.
