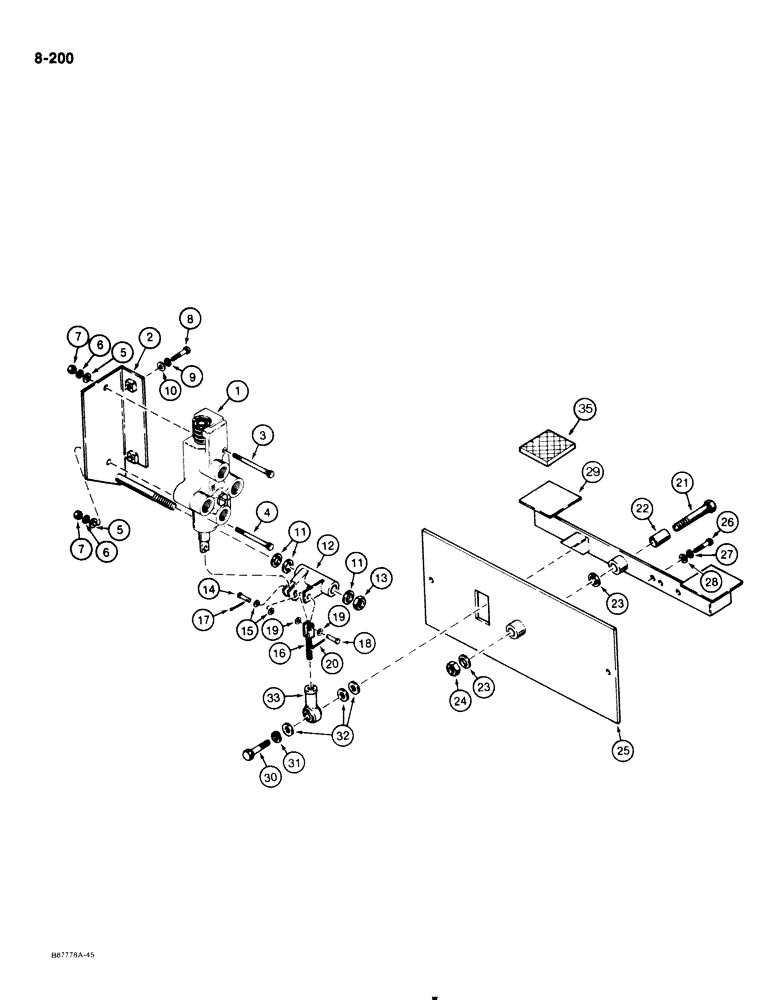

Запчасти Case IH 1818 (8-200) - AUXILIARY CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

D64670

VALVE

ASSEMBLY control, auxiliary hydraulic, parts list Figure 8-202

1шт.

2

E99852

BRACKET

control valve

1шт.

3

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

hex head, 8 mm - 1.25 x 65 mm (8.8), plated

1шт.

4

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

5

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

825-1108

NUT,Hex, M8, Cl 8

hex, 8 mm - 1.25, plated

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

3шт.

12

E99853

CRANK

BELLCRANK control valve

1шт.

13

131-70

NUT,1/2"-13, GB

NUT hex, self locking, 1/2" - 13 NC, plated

1шт.

14

F13790

PIN

clevis, control rod

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

16

E99947

ROD

control

1шт.

17

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

18

T38961

CLEVIS PIN

PIN clevis, 1/4", special

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

20

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

21

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex head, 1/2" - 13 NC x 2-e/4", zinc plated

1шт.

22

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

pedal

1шт.

23

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

24

131-70

NUT,1/2"-13, GB

NUT hex, self locking, 1/2" - 13 NC, plated

1шт.

25

E99847

PLATE

pedal mounting

1шт.

26

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

29

E99879

PEDAL

control, valve

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

495-21044

WASHER,3/8"

3шт.

33

D59922

BALL JOINT

JOINT ball, 3/4" - 24 NF, female

1шт.

35

E20226

PAD

non-slip, control pedal TBG Germany

2шт.
