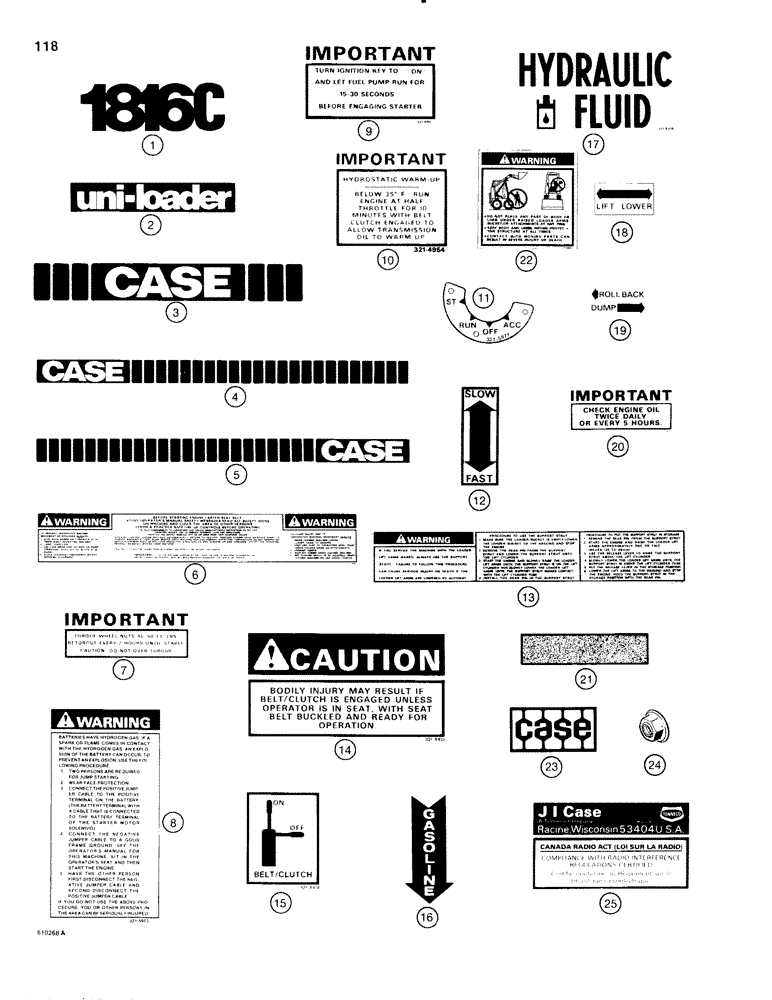

Запчасти Case IH 1816C (118) - DECALS (09) - CHASSIS/ATTACHMENTS

N7325

KIT

- decal, 1816C, reference numbers 1 thru 5 have black background, Inlcudes: Ref. 1 - 22

1шт.

N8344

KIT

- decal, 1816C, reference numbers 1 thru 5 have brown background, Inlcudes: Ref. 1 - 22

1шт.

1

321-6378

DECAL

- 1816C, in N7325 kit

2шт.

1

D123967

DECAL

- 1816C, in N8344 kit

2шт.

2

321-3150

DECAL

- uni-loader, in N7325 kit

2шт.

2

D123964

DECAL

- uni-loader, in N8344 kit

2шт.

3

321-6064

DECAL

- Case, rear, in N7325 kit

1шт.

3

D124236

DECAL

- Case, rear, in N8344 kit

1шт.

4

321-5087

DECAL

- Case, left-hand, in N7325 kit

1шт.

4

D123966

DECAL

- Case, left-hand, in N8344 kit

1шт.

5

321-5086

DECAL

- Case, right-hand, in N7325 kit

1шт.

5

D123965

DECAL

- Case, right-hand, in N8344 kit

1шт.

6

321-6460

DECAL

- warning, instructions before operating machine

1шт.

7

321-2986

DECAL

- torque, wheel nuts

1шт.

8

321-5973

DECAL

- warning, jump start

1шт.

9

321-5110

DECAL

- fuel priming

1шт.

10

321-4954

DECAL

- warm-up instruction

1шт.

11

321-5871

DECAL

PLATE - key switch, aluminum, replaces decal

1шт.

12

321-2510

DECAL

- slow, fast

1шт.

13

321-6214

DECAL

- warning, loader strut

1шт.

14

321-4415

DECAL

- caution, belt/clutch operation

1шт.

15

321-4414

DECAL

- belt/clutch

1шт.

16

D125220

DECAL

- gasoline

1шт.

17

321-6376

DECAL

- hydraulic fluid

1шт.

18

321-2509

DECAL

- lift-lower

1шт.

19

321-2506

DECAL

- rollback-dump

1шт.

20

321-2599

DECAL

- warning, brake

1шт.

21

D55216

PAD,2" x 9"

STRIP - non skid

1шт.

22

D120889

DECAL

- Warning, personal safety instructions

1шт.

23

321-4739

EMBLEM

- case, metal, front plate

1шт.

24

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, fastens emblems to front plate

2шт.

25

NSS

NOT SOLD SEPARAT

DECAL - Canada Radio Act, if used

1шт.
