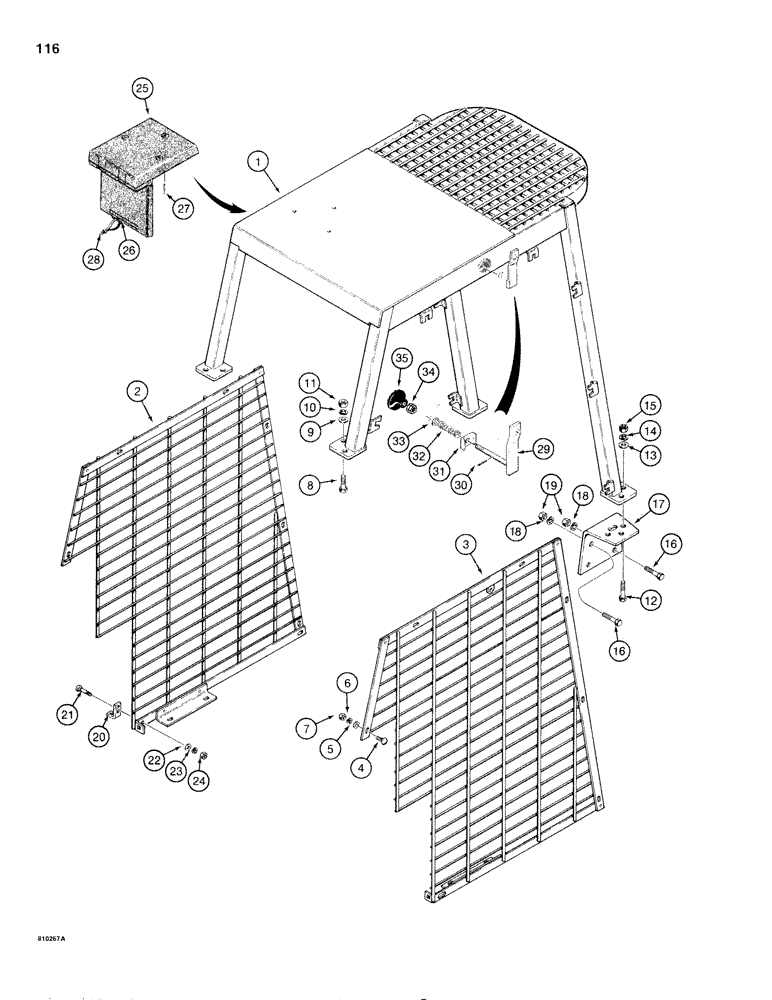

Запчасти Case IH 1816C (116) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

F93430

ROPS

CANOPY - Uni-Loader

1шт.

2

F93849

SCREEN

- left-hand

1шт.

3

D90169

SCREEN

- right-hand

1шт.

4

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

12шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

12шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

7

9635082

NUT,5/16" - 18, Gr 5

12шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

17

F42600

PLATE

- reinforcement, outer

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

20

F42785

- angle

2шт.

21

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

22

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

25

R46464

CASE

BOX - manual, Includes: Ref. 26

1шт.

26

N7189

BEARING

LATCH - manual box

1шт.

27

151-522

RIVET,Pop, 3/16" x .575"

- pop

3шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

D80003

ARM - loader frame strut storage

1шт.

30

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

31

D80803

BRACKET

- arm

1шт.

32

D79941

SPRING

- arm

1шт.

33

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 3/8"

1шт.

34

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

35

F23089

KNOB - delatch

1шт.
