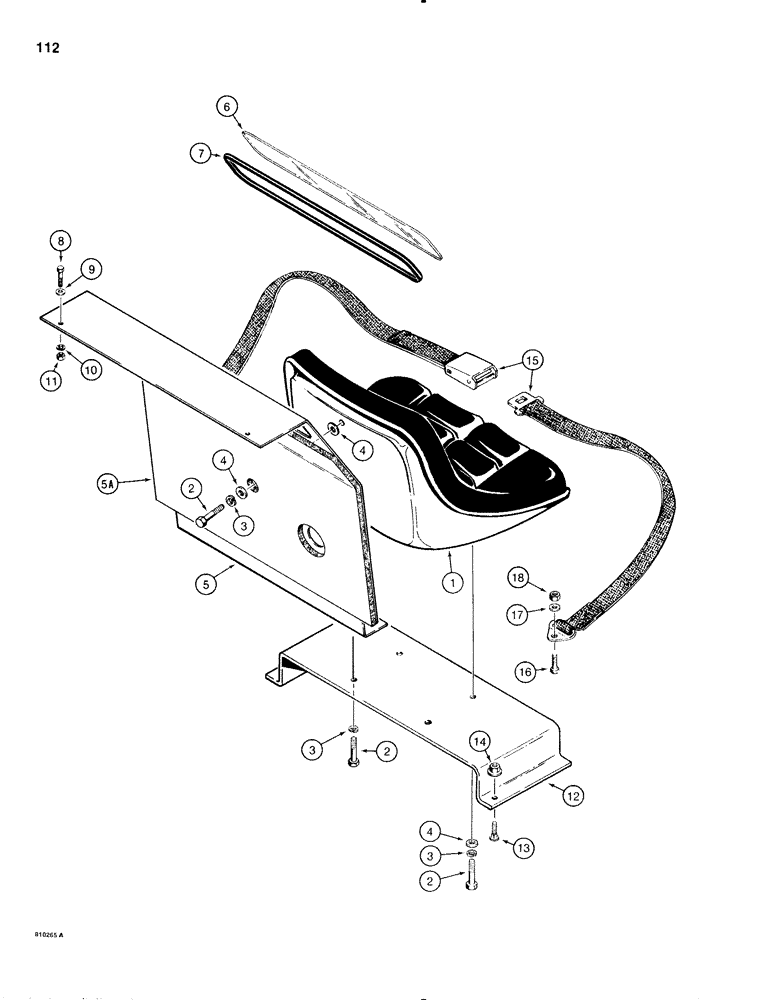

Запчасти Case IH 1816C (112) - SEAT, SEAT BELT, AND SHIELD (09) - CHASSIS/ATTACHMENTS

1

D58556

SEAT

- operators, black, if used

1шт.

1

D125141

SEAT

- operators, brown, if used

1шт.

For Ref #1A, N14342 Trimstrip 06/13/96

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, not used on rear bottom mounting bolts

3шт.

5

D120606

SHIELD

- heat, includes decals, see Fig. 118 for decals

1шт.

5a

D121485

INSULATOR

PAD - insulator

1шт.

6

D86123

WINDOW

- heat shield

1шт.

7

NSS

NOT SOLD SEPARAT

MOULDING - glass, 49.6" (1260 mm) long, cut from A42677

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

D76898

SEAT

PLATE AND PAD - seat mounting

1шт.

13

111-362

CARRIAGE BOLT

CARRIAGE BOLT - 3/8"-16 NC x 1"

2шт.

14

131-941

FLANGE NUT,Flg, 3/8"-16, G5

- hex, flange, 3/8"-16 NC, plated

2шт.

15

D77890

SEAT

BELT ASSEMBLY - seat

1шт.

16

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

17

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

2шт.

18

131-667

NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16"-14 NC, plated

2шт.

A42677

MOLDING

MOULDING - bulk, roll, 50 ft. (1524 cm)

1шт.
