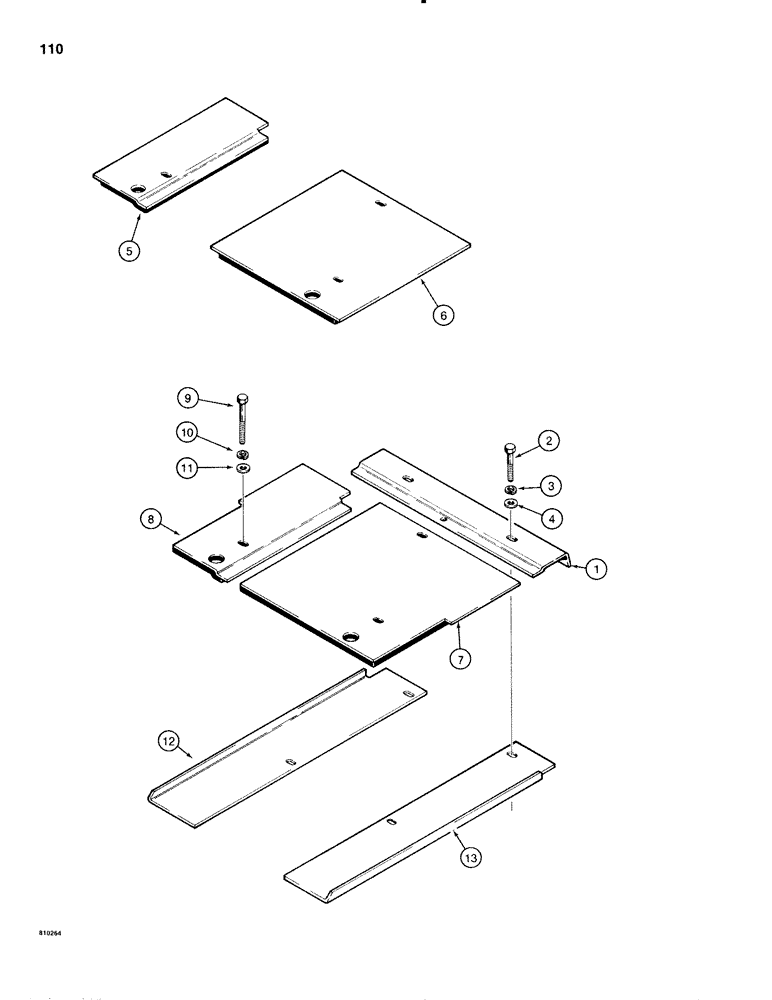

Запчасти Case IH 1816C (110) - FLOOR PLATES AND CHAIN COVERS (09) - CHASSIS/ATTACHMENTS

1

D76057

PLATE ASSY.

PLATE - floor, front, not used with auxiliary hydraulics, see Fig. 88, Ref. 19

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

4

195-104

WASHER,3/8"

- flat, , plated 3/8"

7шт.

5

D87550

PLATE AND PAD - floor, left-hand rear, without brakes

1шт.

6

D87553

PLATE AND PAD - floor, right-hand rear, without brakes

1шт.

7

D59108

PLATE

AND PAD - floor right-hand rear, with brakes

1шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

12

D76543

COVER

- chain, left-hand

1шт.

13

D77675

COVER

- chain, right-hand

1шт.
