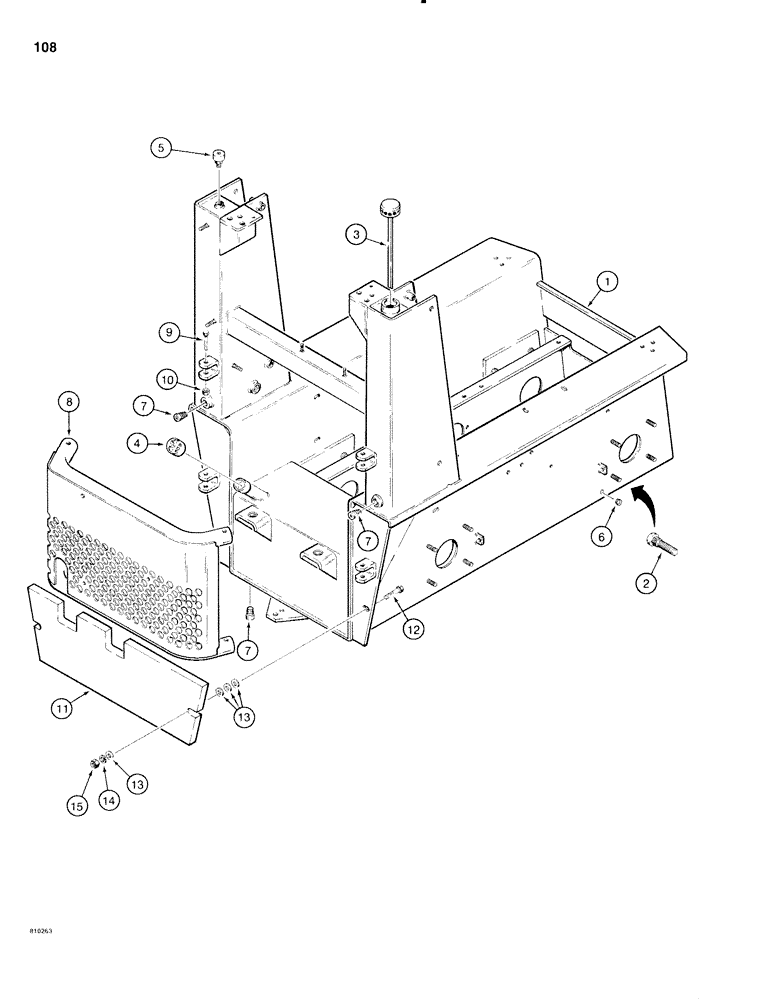

Запчасти Case IH 1816C (108) - MAIN FRAME, COUNTERWEIGHTS, AND REAR GUARD (09) - CHASSIS/ATTACHMENTS

1

D93606

MAIN FRAME - Uni-Loader, Includes: Ref. 2

1шт.

2

E16592

WHEEL BOLT

BOLT - special

16шт.

3

D58160

DIPSTICK

CAP - filler, breather, and level check, hydraulic oil

1шт.

4

D93757

CAP

- fuel

1шт.

5

31543

BREATHER

- hydraulic tank

1шт.

6

205-19

PLUG - button, if used

2шт.

7

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - square socket

3шт.

8

D93378

GUARD - rear

1шт.

9

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

10

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8"-16 NC

4шт.

11

D61695

WEIGHT

COUNTERWEIGHT - rear

2шт.

12

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2"-13 NC x 2-1/2", 1 counterweight

2шт.

12

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2 counterweights Hex, 1/2"-13 x 3 1/2", G5

2шт.

13

195-433

WASHER - flat, 1/2", plated

8шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
