Запчасти Case IH 1816C (104) - LOADER BUCKETS, 35" (889 MM) WIDE (09) - CHASSIS/ATTACHMENTS

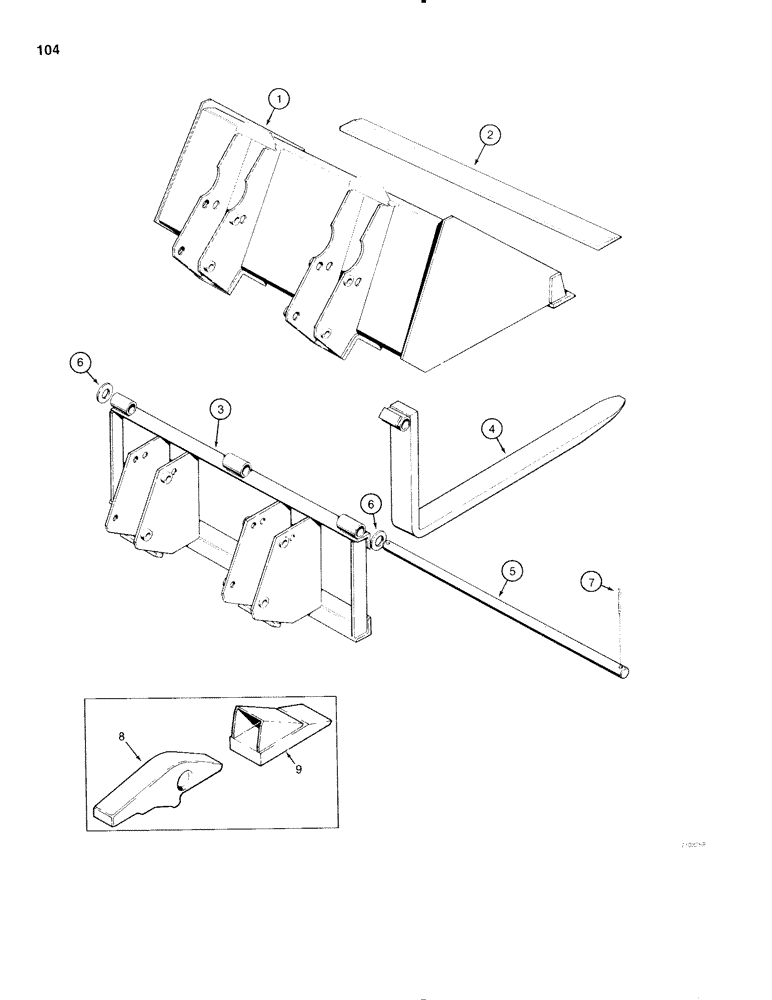

Схема запчастей Case IH 1816C - (104) - LOADER BUCKETS, 35" (889 MM) WIDE (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D17363

BUCKET - 35" (889 mm) wide, machinery item, see Fig. 2 for ordering machinery items, Includes: Ref. 2

1шт.

2

D57144

EDGE

CUTTING EDGE - front, 35" (889 mm) wide bucket

1шт.

1

D17364

BUCKET

- 44" (1118 mm) wide, machinery item, see Fig. 2 for ordering machinery items, Includes: Ref. 2

1шт.

2

D57149

EDGE

CUTTING EDGE - front, 44" (1118 mm) wide bucket

1шт.

1

D17365

BUCKET - 47" (1194 mm) wide (light material), machinery item, see Fig. 2 for ordering machinery items, Includes: Ref. 2

1шт.

2

D57586

EDGE

CUTTING EDGE - front, 47" (1194 mm) wide bucket (light material)

1шт.

3

D61743

FRAME

- pallet fork

1шт.

4

D58339

FORK TEDDER

FORK - pallet

2шт.

5

D57020

ROD

SHAFT - fork retaining, pallet

1шт.

6

195-53

WASHER,1" x 2" x .134"

- flat, 1", pallet fork

2шт.

7

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), , pallet fork 5/32" x 1 1/2"

2шт.

8

T41165

TOOTH

SHANK - tooth, bucket teeth

1шт.

9

T41166

TOOTH

POINT - tooth, bucket teeth

1шт.

Выбрано товаров: 13
