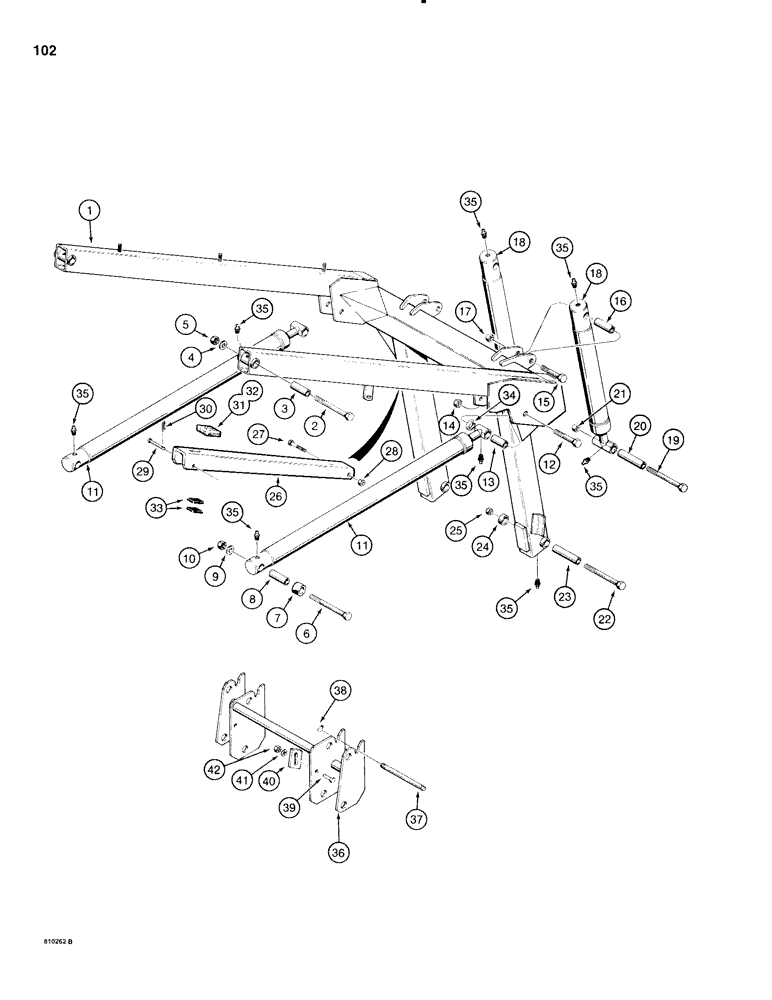

Запчасти Case IH 1816C (102) - LOADER LIFT FRAME AND TOOL TACH (09) - CHASSIS/ATTACHMENTS

1

D90317

ARM

LOADER FRAME - lift, Includes: Ref. 13 decal in Fig. 118

1шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8"-11 NC x 6", plated

2шт.

3

D61551

BUSHING

- loader arm

2шт.

4

195-41

WASHER,5/8"

2шт.

5

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

6

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8"-11 NC x 6", plated

2шт.

7

D75176

SPACER

- cylinder

2шт.

8

D61551

BUSHING

- cylinder

2шт.

9

195-41

WASHER,5/8"

2шт.

10

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

11

D123992

CYLINDER ASSY.

CYLINDER - lift, parts list Fig. 098

2шт.

12

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

13

D56655

BUSHING

- cylinder

2шт.

14

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

15

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

16

D58821

BUSHING

- cylinder

2шт.

17

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

18

D123996

CYLINDER

- bucket, parts list Fig.098

2шт.

19

113-2722

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8"-11 NC x 6", special, plated

2шт.

20

D132900

BUSHING,16mm ID x 22.35mm OD x 95.5mm L

- bucket

2шт.

21

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

22

113-2722

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex head, 5/8"-11 NC x 6", special, plated

2шт.

23

D132900

BUSHING,16mm ID x 22.35mm OD x 95.5mm L

- bucket

2шт.

24

D75176

SPACER

- bucket

2шт.

25

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

26

D79993

STRUT - loader frame

1шт.

27

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

28

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2"-13 NC

1шт.

29

D134253

PIN

- loader frame strut

1шт.

30

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

31

D79692

PAD

- bumper

1шт.

32

RESERVED

1шт.

33

D89804

STRIP

- rubber

2шт.

34

D75176

SPACER

- lift cylinder, rod end

2шт.

35

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

12шт.

36

D60032

TOOL ASSY.

TOOL TACH - equipment

1шт.

37

D60019

AXLE PIN

PIN - tool tach

2шт.

38

G46176

SNAP RING,#56, Ext

Ring, Snap, , pin #56, Ext

4шт.

39

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

40

T40044

WEDGE

- bucket aligning

2шт.

41

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

42

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8"-16 NC

2шт.

345-44

ADHESIVE

- spray, for attaching rubber pads to metal surfaces, not shown

1шт.
