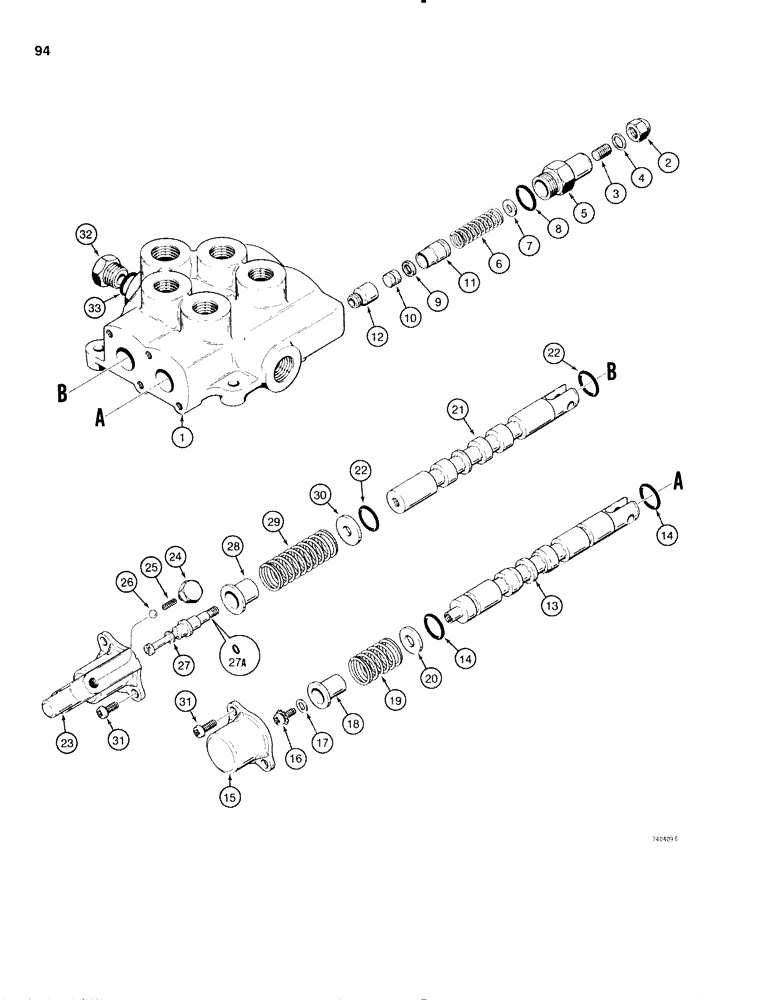

Запчасти Case IH 1816C (094) - D82011 LOADER CONTROL VALVE (08) - HYDRAULICS

D82011

VALVE

CONTROL VALVE ASSEMBLY - 2 spool, VICTOR NO 20JSEH7CN B3, or B3, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

D59380

NUT

- acorn

1шт.

3

D86555

SCREW - set

1шт.

4

D86554

WASHER - special

1шт.

5

D86553

HEAD - relief valve

1шт.

6

D59375

SPRING

- poppet

1шт.

7

D59658

WASHER

- Teflon

1шт.

8

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- head

1шт.

9

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL - plug, not used with solid poppet

1шт.

10

D59371

LARGE PIN

PLUG - poppet, not used with solid poppet

1шт.

11

D59369

VALVE POPPET

POPPET - relief valve

1шт.

12

D59370

SEAT

- poppet

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - letter A, No. 1

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool seal

2шт.

N9704

SPRING

KIT - centering spring, Includes: Ref. 15 - 20

1шт.

15

N9528

CAP

- spool end

1шт.

16

193-524

SCREW - round head slotted, No. 10 - 32 NF x 3/8", external tooth SEMS, Hex Soc Hd, #10-32 x 3/8"

1шт.

17

195-510

WASHER,#8

- flat, No. 10, plated

1шт.

18

N9529

SEAT

- spring

1шт.

19

N9539

TENSION SPRING

CENTERING SPRING - spool

1шт.

20

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - letter B, detent, No. 2

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- spool seal

2шт.

23

N9540

COVER

CAP - spool end

1шт.

24

D86560

SCREW

- special, detent

2шт.

25

N9506

COIL SPRING

SPRING - detent

2шт.

26

211-5

BALL,3/16" Dia

- steel, 1/4" diameter

2шт.

27

D86561

SPOOL

STUD - detent

1шт.

27a

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk, detent stud

1шт.

28

D86559

SEAT

- spring

1шт.

29

D86558

SPRING

CENTERING SPRING - spool

1шт.

30

D86557

WASHER

- special

1шт.

31

169-114

SCREW,Sl Fil Hd, #12 - 24 x 3/8"

- fillister head, slotted, No. 12-24 NC x 3/8"

4шт.

32

D61919

PLUG

- hex

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
