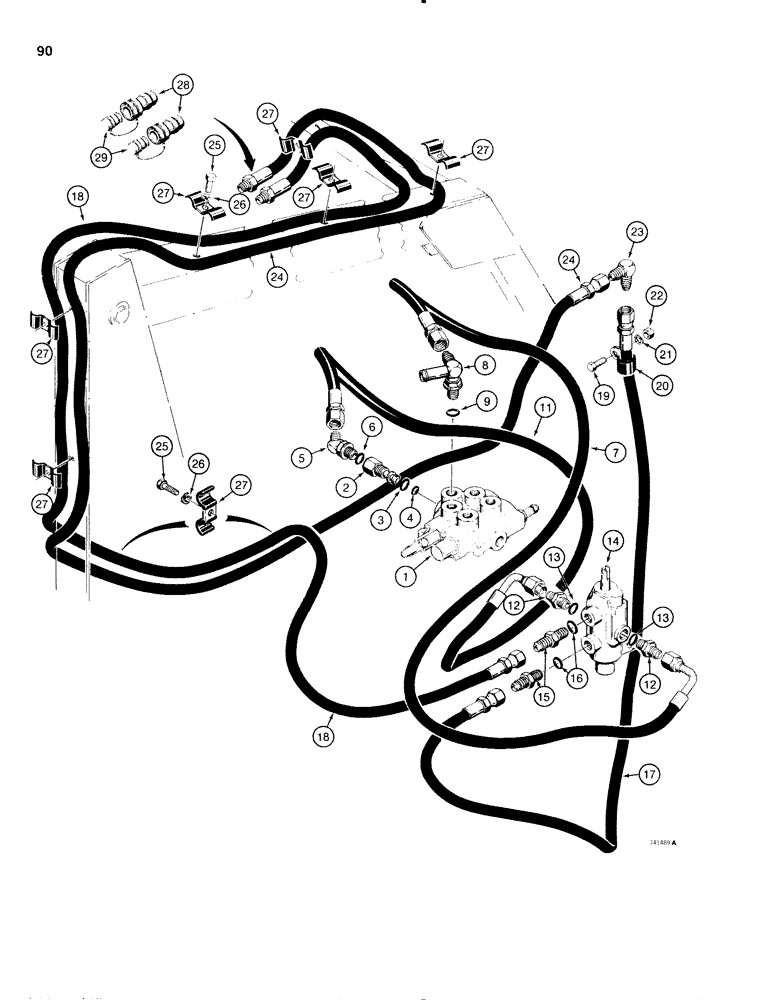

Запчасти Case IH 1816C (090) - AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D82011

VALVE

- loader control, parts list Fig. 094

1шт.

2

D61619

CONNECTOR, ELEC

SLEEVE - connector, power beyond, Includes: Ref. 3 and 4

1шт.

3

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

- large

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- small

1шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, male, Incl. Ref 6

1шт.

7

D65682

HOSE

ASSEMBLY - 38" (965 mm) long

1шт.

8

D60793

FITTING

TEE - special, Includes: Ref. 9

1шт.

11

D65682

HOSE

ASSEMBLY - 38" (965 mm) long

1шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, Includes: Ref. 13

2шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

14

D75216

VALVE

- auxiliary, parts list Fig. 096

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, Incl. Ref. 16

2шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

17

D62398

HOSE

- hydraulic, at valve, lower port, 22" (559 mm) long

1шт.

18

D64488

HOSE

- hydraulic, at valve, upper port, 169" (4293 mm) long

1шт.

19

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

D128685

CLAMP

- hose

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

1шт.

23

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, male

1шт.

24

D62399

HOSE

- hydraulic, to valve, lower port, 144" (3658 mm) long

1шт.

25

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

27

R17319

CLAMP

- hose

8шт.

28

D60707

COUPLING, BREAK AWAY

COUPLING - quick disconnect, female

2шт.

29

D62402

PLUG

- dust

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.
