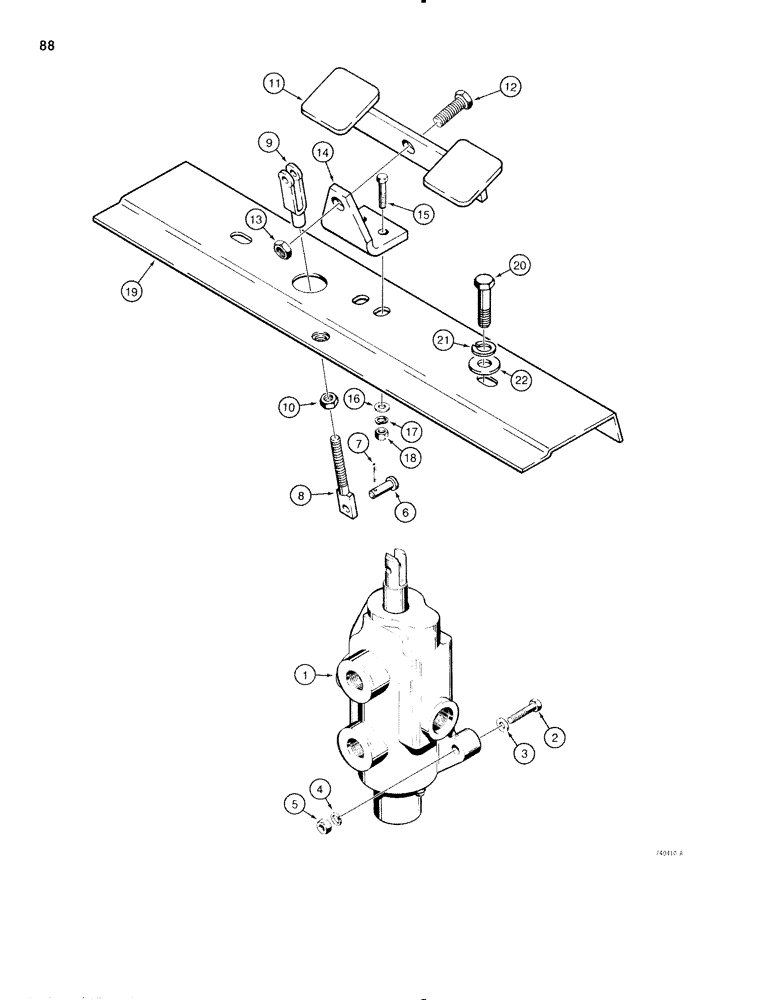

Запчасти Case IH 1816C (088) - AUXILIARY HYDRAULIC CIRCUIT CONTROLS (08) - HYDRAULICS

1

D75216

VALVE

- auxiliary, parts list Fig. 096

1шт.

2

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

3

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

6

141-2

CLEVIS PIN,1/4" x .770"

- 1/4"

2шт.

7

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

8

D59100

ROD

-, Serial Range: valve-pedal

1шт.

9

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - pedal

1шт.

10

129-121

NUT,1/4"-28, G5

1шт.

11

D60812

PEDAL

- control

1шт.

12

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

13

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2"-13 NC

1шт.

14

D59099

BRACKET

- pedal mounting

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

D76056

LARGE PLATE

PLATE - floor, models with auxiliary hydraulics only

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

195-104

WASHER,3/8"

- flat, , zinc plated 3/8"

2шт.
