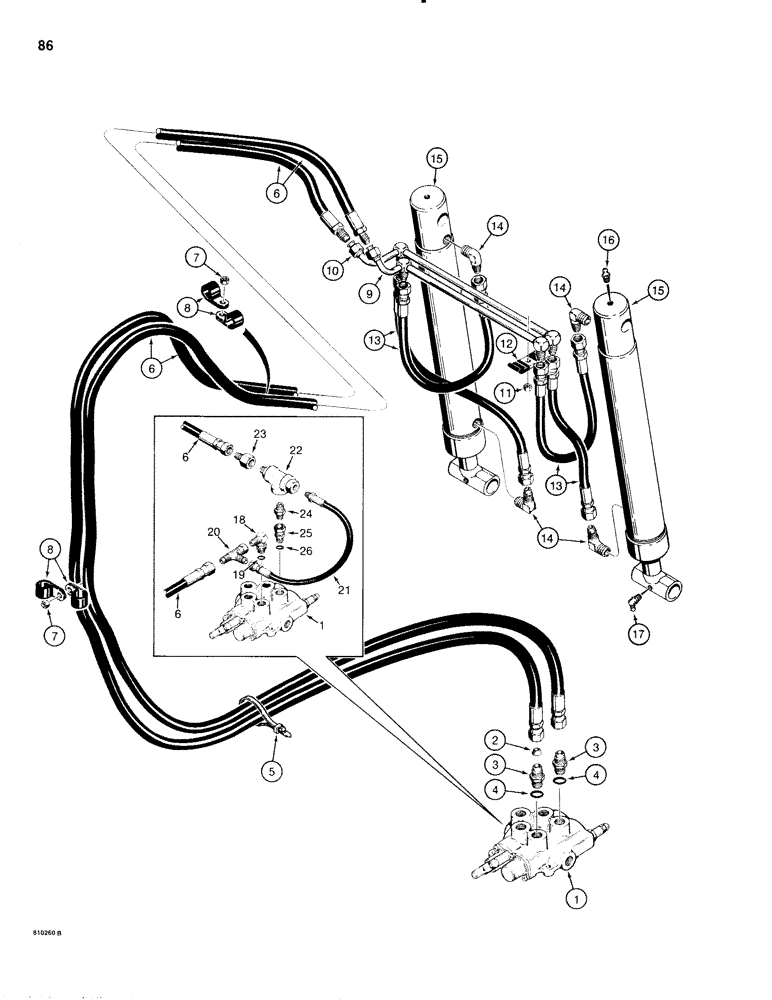

Запчасти Case IH 1816C (086) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D82011

VALVE

- hydraulic control, parts list Fig. 094

1шт.

2

D57031

RESTRICTOR

- hydraulic, Port B

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, male, Incl. Ref. 4

2шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

6

D129015

HOSE

- valve to cylinder, 125" (3175 mm) long

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16"-18 NC, plated

6шт.

8

49855

CLAMP

- P-type, lower rear and inside of hydraulic reservoir

4шт.

8

D128685

CLAMP

- P-type, upper rear of hydraulic reservoir and loader arm frame

8шт.

9

D57606

TUBE

- hydraulic, inner, closed end of cylinder

1шт.

10

D57608

TUBE

- hydraulic, outer, rod end of cylinder

1шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16"-18 NC, plated

2шт.

12

R17319

CLAMP

- tube

2шт.

13

D81836

HOSE

- at cylinder, 16" (406 mm) long

4шт.

14

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degree, male

4шт.

15

D123996

CYLINDER

- bucket, parts list Fig. 098

2шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4"-28 NF

2шт.

17

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree

2шт.

D18064

KIT

- bucket load, check, includes extra parts, Includes: Ref. 18 - 26

1шт.

18

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, male, Includes: Ref. 19

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

20

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

adjustable, male-female 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

21

D69416

HOSE

- 12" (305 mm) long

1шт.

22

D69752

VALVE

- check, pilot

1шт.

23

218-1082

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, Fem Pipe

ADAPTER - straight, male-female

1шт.

24

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

CONNECTOR - straight, male

1шт.

25

218-5265

HYD CONNECTOR,9/16"-18 Male ORB x 1/2" NPSM Fem Sw

CONNECTOR - straight, adjustable, Includes: Ref. 26

1шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.
