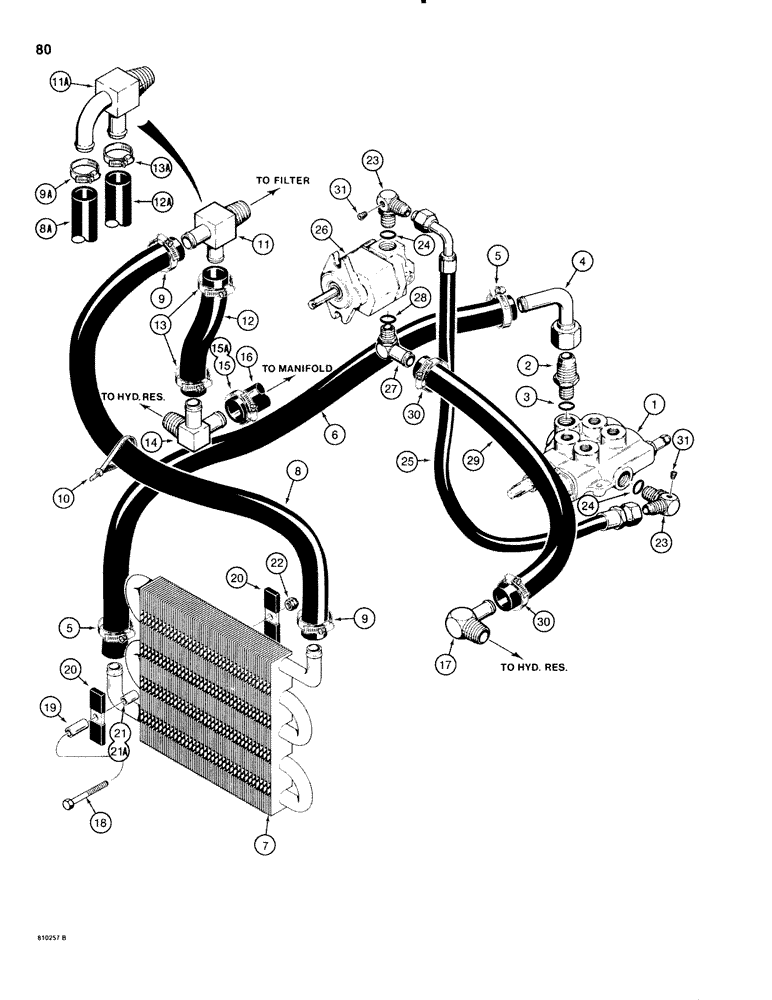

Запчасти Case IH 1816C (080) - PRIMARY EQUIPMENT HYDRAULIC CIRCUIT AND COOLER (08) - HYDRAULICS

1

D82011

VALVE

- loader, parts list Fig. 094

1шт.

2

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, male, if used, see Ref. 4, Includes: Ref. 3

1шт.

4

D63870

TUBE

- at valve to cooler, not used on models with auxiliary hydraulic circuit, see Ref. 8 Fig. 090

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

6

D65488

HOSE,0.75" ID x 40.00"

1шт.

7

D57600

COOLER

- hydraulic oil

1шт.

8

D65487

HOSE,0.75" ID x 30.00"

Cooler to Tank, Used on Models Without Noise Control 0.75" ID x 30.00"

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, used with vertical mounted filter

2шт.

9a

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, used with horizontal filter

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

11

D65489

FITTING

- special tee, used with vertical mounted filter

1шт.

11a

D127965

TEE

FITTING - special tee, used with horizontal mounted filter

1шт.

12

D95236

HOSE

- at tank, 3/4" (19 mm) ID x 9" (229 mm) long

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, used with vertical mounted filter

2шт.

13a

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, used with horizontal mounted filter

2шт.

14

D64786

FITTING

- special tee

1шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, used with vertical mounted filter

2шт.

15a

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, used with horizontal mounted filter

2шт.

16

D95239

LARGE HOSE

HOSE - crossover, 3/4" (19 mm) ID x 28" (711 mm) long

1шт.

17

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

BARB FITTING - 90 degree hose stem

1шт.

18

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

19

D88214

SPACER

- clamp, hose

2шт.

20

D54416

CLAMP

- tube

4шт.

21

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp, short, used with vertical mounted filter

2шт.

21a

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp, short, used with horizontal mounted filter

2шт.

22

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC

2шт.

23

D123352

ELBOW

- 90 degree, male, Includes: Ref. 24

2шт.

25

D75439

HOSE

-, Serial Range: valve-pump

1шт.

26

D61866

PUMP

- equipment, parts list Fig. 092

1шт.

27

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

BARB FITTING - 90 degree, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- barb fitting

1шт.

29

D64064

LARGE HOSE

HOSE - pump to hydraulic tank, 3/4" (19 mm) ID x 27" (686 mm) long

1шт.

30

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

31

221-849

PLUG,Hex Soc, 1/8"-27

- drain

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
